STADIUM PRO - 2 MODULES - CIRCULAR OPTIC 10° - CRI 70 5700K - IP66 - CLASS I
Code:
GWP3231AM757
Range: STADIUM PRO
High power innovative LED floodlights
Stadium PRO is the new range of LED light floodlights designed to meet the highest standards and lighting performance for installations hosting professional competitions, ensuring visual comfort for both athletes and spectators. Stadium PRO provides solutions that provide excellent distribution of light both horizontally and vertically, such that competitions can take place while ensuring perfect visibility for race judges, players and cameras and maximum comfort for spectators.
0,24 m2
IP66
IK08
-
Technical Info
Information
Download
Software
Video
Certificates
GENERAL INFORMATION
-
OPTIC AND ILLUMINATING FEATURES
-
Context
Professional sport lighting

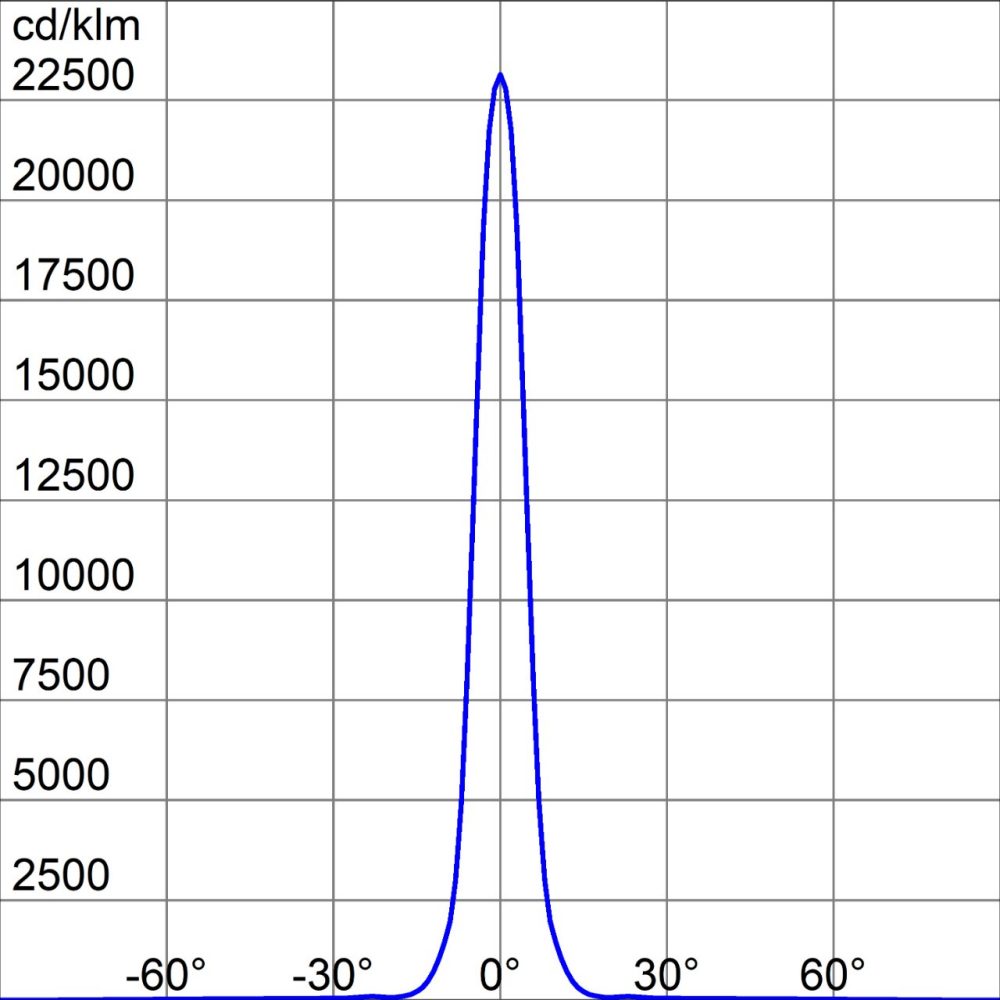

Optic
Circular 10°
Luminaire
High power LED floodlight
Unified Glare Rating
ULOR = 0%
Application
Indoor / Outdoor
Lumen output (lm)
117000
Unique digital code
(Datamatrix)
Currently not present
Efficacy
(lm/W) 122
(lm/W) 122
Colour
Graphite grey
Colour temperature
5700 K
Type of light source
LED
Colour Rendering Index
CRI70
System power
960 W
Standard Deviation Colour Matching
SDCM = 5
LED Lifetime
L90B10(Tq25°C)=40.000h; L80B10(Tq25°C)=75.000h
Photobiological Risk Class
-
Weight (kg)
18
Standard
EN60598-1; EN60598-2-5; IEC 62471; IEC 62778
Warranty
5 years
ELETRICAL AND LIGHTING FEATURES
-
Stocking temperature
-
Supply voltage
See external supply unit
Operating temperature
-25 +50 °C
Rated frequency (Hz)
See external supply unit
MATERIALS
-
Driver
To be ordered separately
Body
Die-cast aluminium -
Driver failure rate
See external supply unit
Shield type
Flat tempered glass 4mm
Overvoltage protection
See external supply unit
Optic
T.I.R.Ex. Optical PMMA HT
Control System
See external supply unit
Gasket
Anti-aging silicone
INSTALLATION AND MAINTENANCE
-
Locking Hook
-
Mounting and installation
Lighting tower - Surface
External screw
Stainless steel
Tilt
Rotation on bracket with integrated goniometer
Colour
Polyester powder coated
Wiring
Watertight connector between floodlight and power supply unit
STANDARDS AND APPROVALS
-
Fixing
Bracket
Classification
-
Light souce replaceability
By professional
Device with reduced surface temperature
-
Controlgear replaceability
By professional
DIN 18032-3 certification
Available
Driver Box
External
IPEA
-
Maximum surface exposed to the wind
0,24 m2
Insulation class
I
-
-
IP degree
IP66
-
-
Mechanical resistance
IK08
-
-
Glow Wire Test
-
-
-
Ware Number
94054210
EQUIPMENT AND NOTES
CCT 4000K versions available on request.
NOTES: to be used with the relative power supply unit.
Technical data may change due to the continuous evolution of LED technology.
The nominal flux refers to Tj=85°C
NOTES: to be used with the relative power supply unit.
Technical data may change due to the continuous evolution of LED technology.
The nominal flux refers to Tj=85°C
