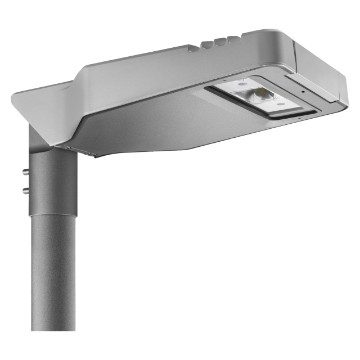

ROAD [5] - MINI - 2 (2X3 LED) - STAND ALONE - WIDE OPTIC - 3000 K - 0.9A - IP66 - CLASS II
Code:
GWR521230K
Range: ROAD [5] Range
Street lighting LED system
Road [5] is the new range of LED lighting devices which completes the offer for urban and road lighting. The new range has been designed to offer better lighting performances, simplify the installation and the maintenance of the lighting devices and promote the maximum energy-saving. Road [5] is the ideal solution to all types of urban and interurban road lighting, round-about, large outdoor areas and parking lots, both for new and already existing installations.
0.15 m²
IP66
IK08
-
Technical Info
Information
Download
Software
Certificates
GENERAL INFORMATION
-
OPTIC AND ILLUMINATING FEATURES
-
Context
Street and parking lighting

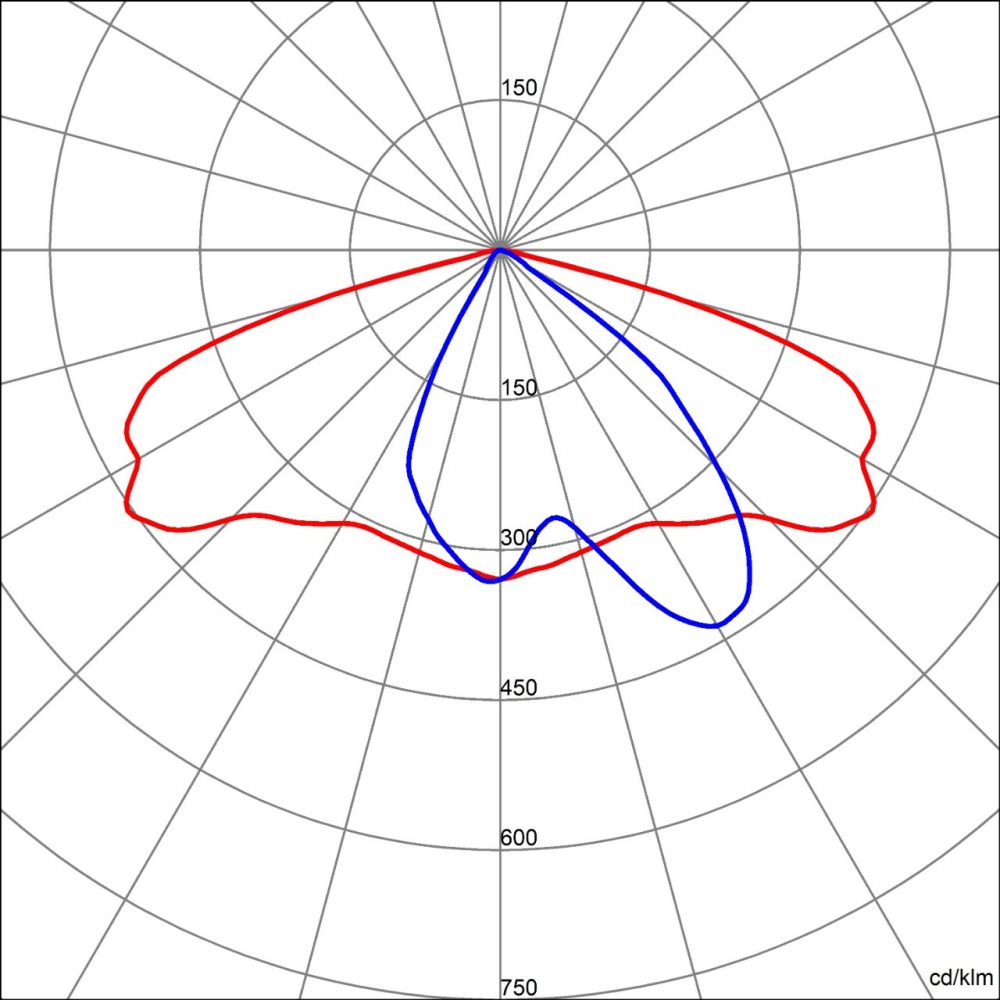

Optic
WIDE
Luminaire
LED Road Equipment
Unified Glare Rating
G*4 - ULOR = 0
Application
External
Lumen output (lm)
7900
Unique digital code
(Datamatrix)
Currently not present
Efficacy
(lm/W) 120
(lm/W) 120
Colour
Graphite grey
Colour temperature
3000 K
Type of light source
LED
Colour Rendering Index
CRI>70
System
power 66 W @ 0,9A
power 66 W @ 0,9A
Standard Deviation Colour Matching
SDCM = 5
LED Lifetime
L90B10(Tq25°C)>115.000h; L90B10(Tq40°C)=115.000h
Photobiological Risk Class
RG0
Weight (kg)
6.6
Standard
EN 60598-2-3, EN 60598-1 IEC/TR 62778
Warranty
5 years
ELETRICAL AND LIGHTING FEATURES
-
Stocking temperature
-
Supply voltage
220 - 240 V
Operating temperature
-25 +40 °C
Rated frequency (Hz)
50 / 60
MATERIALS
-
Driver failure rate
F10=100.000h Tq25°C/75.000h Tq40°C
Body
Die-cast aluminium -
Driver
Included
Shield type
4mm thick flat tempered glass
Overvoltage protection
DM 10KV / CM 10KV
Optic
Silver PVD aluminium reflector
Control System
Stand alone
Gasket
Anti-aging silicone
INSTALLATION AND MAINTENANCE
-
Locking Hook
Integrated front handle
Mounting and installation
Pole Head - Outreach
External screw
Stainless steel
Tilt
-20° ÷ +10° side bracket - -10° ÷ +20° pole head
Colour
Powder coating
Wiring
Isolating switch
STANDARDS AND APPROVALS
-
Fixing
Pole Head - Outreach
Classification
-
Light souce replaceability
By professional
Device with reduced surface temperature
-
Controlgear replaceability
By professional
DIN 18032-3 certification
-
Driver Box
Built-in
IPEA
-
Maximum surface exposed to the wind
0.15 m²
Insulation class
II
-
-
IP degree
IP66
-
-
Mechanical resistance
IK08
-
-
Glow Wire Test
-
-
-
Ware Number
94054239
EQUIPMENT AND NOTES
Available for projects and requirements: Class I, additional CCT and CRI, 1-10V versions, DALI 5 step, NEMA, Zhaga.
NOTES: technical data may change due to the continuous evolution of LED technology.
The nominal flux refers to Tj=85°C.
NOTES: technical data may change due to the continuous evolution of LED technology.
The nominal flux refers to Tj=85°C.
