LED - Optic ST1 - For photovoltaic systems

EQUIPMENT AND NOTES

LED - Optic ST2

EQUIPMENT AND NOTES

LED - Optic ST3

EQUIPMENT AND NOTES
Street lighting in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Street lighting in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Gewiss Code
Voltage
Number of modules
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)

Gewiss Code GWS7681
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 6160
Colour Graphite/Aluminium
Weight (kg) 9.1
Go
Gewiss Code GWS7683
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 4 (4x16 LED)
Colour temperature 4000 K (CRI>70)
System power 105 W
Nominal flux (lm) 13400
Lumen output (lm) 11760
Colour Graphite/Aluminium
Weight (kg) 10.3
Go
Gewiss Code GWS7684
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 5 (5x16 LED)
Colour temperature 4000 K (CRI>70)
System power 129 W
Nominal flux (lm) 16530
Lumen output (lm) 14500
Colour Graphite/Aluminium
Weight (kg) 10.9
Go
EQUIPMENT AND NOTES

LED - Cycle and pedestrian optic

Street lighting in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Street lighting in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Gewiss Code
Voltage
Number of modules
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)

Gewiss Code GWS7030
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 1 (1x16 LED)
Colour temperature 4000 K (CRI>70)
System power 31 W
Nominal flux (lm) 3610
Lumen output (lm) 2840
Colour Graphite/Aluminium
Weight (kg) 8.5
Go
Gewiss Code GWS7031
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 5520
Colour Graphite/Aluminium
Weight (kg) 9.1
Go
Gewiss Code GWS7032
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 3 (3x16 LED)
Colour temperature 4000 K (CRI>70)
System power 81 W
Nominal flux (lm) 10230
Lumen output (lm) 8060
Colour Graphite/Aluminium
Weight (kg) 9.7
Go
EQUIPMENT AND NOTES

Cut-Off optic - Adjustable inclination

Complementary items

Cut-Off optic - Adjustable inclination

Die-cast aluminium street lighting - Wired versions with P.F. correction - Flat glass - IP66 - Class II
Die-cast aluminium street lighting - Wired versions with P.F. correction - Flat glass - IP66 - Class II
Gewiss Code
Voltage
Lamp power
Lamp
Lamp holder
Lamp current
Colour
Weight (kg)

Gewiss Code GW87303
Voltage 230 V - 50 Hz
Lamp power 50 W
Lamp ST
Lamp holder E27
Lamp current 0.8 A
Colour Graphite/Aluminium
Weight (kg) 11
Go
Gewiss Code GW87304
Voltage 230 V - 50 Hz
Lamp power 70 W
Lamp MT/ST
Lamp holder E27
Lamp current 1 A
Colour Graphite/Aluminium
Weight (kg) 11.5
Go
Gewiss Code GW87305
Voltage 230 V - 50 Hz
Lamp power 100 W
Lamp MT/ST
Lamp holder E40
Lamp current 1.2 A
Colour Graphite/Aluminium
Weight (kg) 13
Go
Gewiss Code GW87306
Voltage 230 V - 50 Hz
Lamp power 150 W
Lamp MT/ST
Lamp holder E40
Lamp current 1.8 A
Colour Graphite/Aluminium
Weight (kg) 13.5
Go
Street lighting in die-cast aluminium - wired versions - flat glass - IP66 Class II - electronic ballast
Street lighting in die-cast aluminium - wired versions - flat glass - IP66 Class II - electronic ballast
Gewiss Code
Voltage
Lamp power
Lamp
Lamp holder
Lamp current
Colour
Weight (kg)

Gewiss Code GW87308
Voltage 220/240 V - 50/60 Hz
Lamp power 45 W
Lamp MT
Lamp holder PGZ-12
Lamp current 0.5 A
Colour Graphite/Aluminium
Weight (kg) 10.9
Go
Gewiss Code GW87309
Voltage 220/240 V - 50/60 Hz
Lamp power 60 W
Lamp MT
Lamp holder PGZ-12
Lamp current 0.65 A
Colour Graphite/Aluminium
Weight (kg) 10.9
Go
Gewiss Code GW87310
Voltage 220/240 V - 50/60 Hz
Lamp power 90 W
Lamp MT
Lamp holder PGZ-12
Lamp current 0.97 A
Colour Graphite/Aluminium
Weight (kg) 11
Go
Gewiss Code GW87311
Voltage 220/240 V - 50/60 Hz
Lamp power 140 W
Lamp MT
Lamp holder PGZ-12
Lamp current 1.49 A
Colour Graphite/Aluminium
Weight (kg) 11
Go

Cut-Off optic - Adjustable inclination - Bi-power

Complementary items

Standard versions

Wired versions - IP66 - Class I
Wired versions - IP66 - Class I
Gewiss Code
Voltage
Optic
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)

Gewiss Code GWS4101GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 3000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 1980
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4102GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 3000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 1920
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4103GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 3000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2540
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4104GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 3000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2286
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4105GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 3000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2450
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4106GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 3000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2360
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4101GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 4000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2130
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4102GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 4000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2060
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4103GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 4000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2730
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4104GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 4000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2600
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4105GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 4000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2640
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4106GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 4000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2540
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4101GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 5700 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2280
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4102GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 5700 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2210
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4103GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 5700 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2920
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4104GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 5700 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2604
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4105GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 5700 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2830
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4106GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 5700 K (CRI>80)
System power 25 W
Nominal flux (lm) 2960
Lumen output (lm) 2720
Colour Grey RAL 7037
Weight (kg) 1.8
Go
Gewiss Code GWS4101BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 3000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2750
Lumen output (lm) 1980
Colour BlueGreen
Weight (kg) 1.8
Go
Gewiss Code GWS4103BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 3000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2750
Lumen output (lm) 2540
Colour BlueGreen
Weight (kg) 1.8
Go
Gewiss Code GWS4104BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 3000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2750
Lumen output (lm) 2420
Colour BlueGreen
Weight (kg) 1.8
Go
Gewiss Code GWS4105BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 3000 K (CRI>80)
System power 25 W
Nominal flux (lm) 2750
Lumen output (lm) 2450
Colour BlueGreen
Weight (kg) 1.8
Go
EQUIPMENT AND NOTES

Standard versions

Wired versions - IP66 - Class I
Wired versions - IP66 - Class I
Gewiss Code
Voltage
Optic
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)

Gewiss Code GWS4111GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 3000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5920
Lumen output (lm) 3950
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4112GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 3000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5920
Lumen output (lm) 3830
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4113GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 3000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5920
Lumen output (lm) 5070
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4114GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 3000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5920
Lumen output (lm) 4572
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4115GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 3000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5920
Lumen output (lm) 4910
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4116GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 3000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5920
Lumen output (lm) 4720
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4111GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 4000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5910
Lumen output (lm) 4250
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4112GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 4000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5910
Lumen output (lm) 4120
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4113GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 4000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5910
Lumen output (lm) 5460
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4114GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 4000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5910
Lumen output (lm) 5210
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4115GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 4000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5910
Lumen output (lm) 5280
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4116GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 4000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5910
Lumen output (lm) 5080
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4111GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 5700 K (CRI>80)
System power 50 W
Nominal flux (lm) 5920
Lumen output (lm) 4550
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4112GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 5700 K (CRI>80)
System power 50 W
Nominal flux (lm) 5920
Lumen output (lm) 4410
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4113GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 5700 K (CRI>80)
System power 50 W
Nominal flux (lm) 5920
Lumen output (lm) 5840
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4114GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 5700 K (CRI>80)
System power 50 W
Nominal flux (lm) 5920
Lumen output (lm) 5208
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4115GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 5700 K (CRI>80)
System power 50 W
Nominal flux (lm) 5920
Lumen output (lm) 5650
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4116GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 5700 K (CRI>80)
System power 50 W
Nominal flux (lm) 5920
Lumen output (lm) 5430
Colour Grey RAL 7037
Weight (kg) 3
Go
Gewiss Code GWS4111BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 3000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5500
Lumen output (lm) 3950
Colour BlueGreen
Weight (kg) 3
Go
Gewiss Code GWS4113BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 3000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5500
Lumen output (lm) 5070
Colour BlueGreen
Weight (kg) 3
Go
Gewiss Code GWS4114BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 3000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5500
Lumen output (lm) 4840
Colour BlueGreen
Weight (kg) 3
Go
Gewiss Code GWS4115BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 3000 K (CRI>80)
System power 50 W
Nominal flux (lm) 5500
Lumen output (lm) 4910
Colour BlueGreen
Weight (kg) 3
Go
EQUIPMENT AND NOTES

Standard versions

Wired versions - IP66 - Class I
Wired versions - IP66 - Class I
Gewiss Code
Voltage
Optic
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)

Gewiss Code GWS4151GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 3000 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 9880
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4152GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 3000 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 9570
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4153GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 3000 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 12680
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4154GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 3000 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 11431
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4155GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 3000 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 12270
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4156GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 3000 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 11790
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4151GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 4000 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 10630
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4152GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 4000 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 10300
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4153GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 4000 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 13650
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4154GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 4000 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 13020
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4155GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 4000 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 13200
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4156GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 4000 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 12690
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4151GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 5700 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 11380
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4152GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 5700 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 11030
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4153GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 5700 K (CRI>80)
System power 118 W
Nominal flux (lm) 15900
Lumen output (lm) 14610
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4154GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 5700 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 13020
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4155GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 5700 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 14130
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4156GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 5700 K (CRI>80)
System power 118 W
Nominal flux (lm) 14280
Lumen output (lm) 13590
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4151BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 3000 K (CRI>80)
System power 118 W
Nominal flux (lm) 13270
Lumen output (lm) 9880
Colour BlueGreen
Weight (kg) 6
Go
Gewiss Code GWS4153BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 3000 K (CRI>80)
System power 118 W
Nominal flux (lm) 13270
Lumen output (lm) 12680
Colour BlueGreen
Weight (kg) 6
Go
Gewiss Code GWS4154BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 3000 K (CRI>80)
System power 118 W
Nominal flux (lm) 13270
Lumen output (lm) 12100
Colour BlueGreen
Weight (kg) 6
Go
Gewiss Code GWS4155BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 3000 K (CRI>80)
System power 118 W
Nominal flux (lm) 13270
Lumen output (lm) 12270
Colour BlueGreen
Weight (kg) 6
Go
Gewiss Code GWS4154GD
Voltage 220/240 V - 50/60 Hz - DALI
Optic Diffused 100°
Colour temperature 4000 K (CRI>80)
System power 121 W
Nominal flux (lm) 14280
Lumen output (lm) 13020
Colour Grey RAL 7037
Weight (kg) 6
Go
Gewiss Code GWS4156GD
Voltage 220/240 V - 50/60 Hz - DALI
Optic Asymmetrical
Colour temperature 4000 K (CRI>80)
System power 121 W
Nominal flux (lm) 14280
Lumen output (lm) 12690
Colour Grey RAL 7037
Weight (kg) 6
Go
EQUIPMENT AND NOTES

RGBW versions

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Complementary items

Standard versions

Wired versions - IP66 - Class I
Wired versions - IP66 - Class I
Gewiss Code
Voltage
Optic
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)

Gewiss Code GWS4131GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 3000 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 4940
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4132GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 3000 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 4790
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4133GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 3000 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 6340
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4134GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 3000 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 5715
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4135GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 3000 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 6130
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4136GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 3000 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 5900
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4131GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 4000 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 5320
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4132GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 4000 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 5150
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4133GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 4000 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 6820
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4134GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 4000 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 6510
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4135GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 4000 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 6600
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4136GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 4000 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 6350
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4131GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 5700 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 5690
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4132GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 5700 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 5520
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4133GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 5700 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 7310
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4134GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 5700 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 6510
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4135GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 5700 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 7070
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4136GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 5700 K (CRI>80)
System power 60 W
Nominal flux (lm) 7120
Lumen output (lm) 6790
Colour Grey RAL 7037
Weight (kg) 3.2
Go
Gewiss Code GWS4131BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 3000 K (CRI>80)
System power 60 W
Nominal flux (lm) 6610
Lumen output (lm) 4940
Colour BlueGreen
Weight (kg) 3.2
Go
Gewiss Code GWS4133BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 3000 K (CRI>80)
System power 60 W
Nominal flux (lm) 6610
Lumen output (lm) 6340
Colour BlueGreen
Weight (kg) 3.2
Go
Gewiss Code GWS4134BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 3000 K (CRI>80)
System power 60 W
Nominal flux (lm) 6610
Lumen output (lm) 6050
Colour BlueGreen
Weight (kg) 3.2
Go
Gewiss Code GWS4135BS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 3000 K (CRI>80)
System power 60 W
Nominal flux (lm) 6610
Lumen output (lm) 6130
Colour BlueGreen
Weight (kg) 3.2
Go
EQUIPMENT AND NOTES

RGBW versions

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Complementary item

Standard versions

Wired versions - IP66 - Class I
Wired versions - IP66 - Class I
Gewiss Code
Voltage
Optic
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)

Gewiss Code GWS4171GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 3000 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 19760
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4172GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 3000 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 19150
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4173GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 3000 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 25360
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4174GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 3000 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 22862
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4175GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 3000 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 24530
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4176GS30K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 3000 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 23580
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4171GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 4000 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 21270
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4172GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 4000 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 20600
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4173GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 4000 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 27290
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4174GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 4000 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 26040
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4175GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 4000 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 26400
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4176GS
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 4000 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 25380
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4171GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Spotlight 10°
Colour temperature 5700 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 22770
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4172GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Restricted 30°
Colour temperature 5700 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 22060
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4173GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Medium 60°
Colour temperature 5700 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 29220
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4174GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Diffused 100°
Colour temperature 5700 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 26040
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4175GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Elliptical
Colour temperature 5700 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 28270
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4176GS57K
Voltage 220/240 V - 50/60 Hz - Stand alone
Optic Asymmetrical
Colour temperature 5700 K (CRI>80)
System power 236 W
Nominal flux (lm) 28480
Lumen output (lm) 27170
Colour Grey RAL 7037
Weight (kg) 13
Go
Gewiss Code GWS4176GD
Voltage 220/240 V - 50/60 Hz - DALI
Optic Asymmetrical
Colour temperature 4000 K (CRI>80)
System power 245 W
Nominal flux (lm) 28480
Lumen output (lm) 25380
Colour Grey RAL 7037
Weight (kg) 13
Go
EQUIPMENT AND NOTES

Complementary item

Symmetrical optics

Complementary items

Symmetrical optic

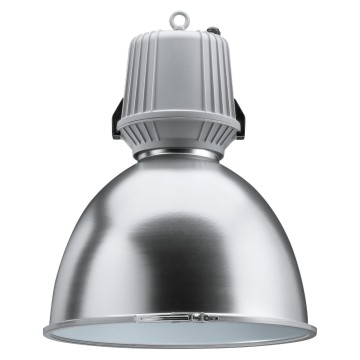

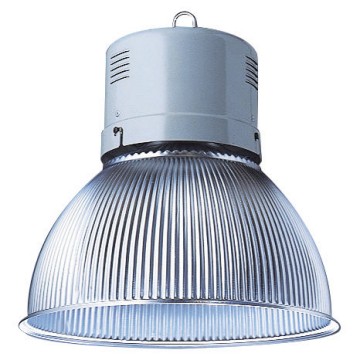

Wired versions with p.f. correction complete with lamp - IP65 - Class II
Wired versions with p.f. correction complete with lamp - IP65 - Class II
Gewiss Code
Voltage
Lamp power
Lamp supplied
Lamp holder
Lamp current
Colour
Weight (kg)

Gewiss Code GW85001S
Voltage 230 V - 50 Hz
Lamp power 70 W
Lamp supplied SD
Lamp holder RX7s
Lamp current 1 A
Colour Smoke grey
Weight (kg) 5.3
Go
Gewiss Code GW85001M
Voltage 230 V - 50 Hz
Lamp power 70 W
Lamp supplied MD
Lamp holder RX7s
Lamp current 1 A
Colour Smoke grey
Weight (kg) 5.3
Go
Gewiss Code GW85004M
Voltage 230 V - 50 Hz
Lamp power 100 W
Lamp supplied ME
Lamp holder E27
Lamp current 1.1 A
Colour Smoke grey
Weight (kg) 5.5
Go
Gewiss Code GW85005S
Voltage 230 V - 50 Hz
Lamp power 70 W
Lamp supplied ST*
Lamp holder E27
Lamp current 1 A
Colour Smoke grey
Weight (kg) 5.4
Go
EQUIPMENT AND NOTES

Asymmetrical optics

Circular optic

Complementary items

Symmetrical restricted beam optics

Wired versions with p.f. correction complete with lamp - IP65 - Class II
Wired versions with p.f. correction complete with lamp - IP65 - Class II
Gewiss Code
Voltage
Lamp power
Lamp supplied
Lamp holder
Lamp current
Colour
Weight (kg)

Gewiss Code GW85201S
Voltage 230 V - 50 Hz
Lamp power 250 W
Lamp supplied ST
Lamp holder E40
Lamp current 3 A
Colour Smoke grey
Weight (kg) 10.5
Go
Gewiss Code GW85201M
Voltage 230 V - 50 Hz
Lamp power 250 W
Lamp supplied MT
Lamp holder E40
Lamp current 3 A
Colour Smoke grey
Weight (kg) 10.5
Go
Gewiss Code GW85202M
Voltage 230 V - 50 Hz
Lamp power 250 W
Lamp supplied MT*
Lamp holder E40
Lamp current 2.2 A
Colour Smoke grey
Weight (kg) 9.7
Go
Gewiss Code GW85203S
Voltage 230 V - 50 Hz
Lamp power 400 W
Lamp supplied ST
Lamp holder E40
Lamp current 4.2 A
Colour Smoke grey
Weight (kg) 11.9
Go
Gewiss Code GW85203M
Voltage 230 V - 50 Hz
Lamp power 400 W
Lamp supplied MT
Lamp holder E40
Lamp current 4.2 A
Colour Smoke grey
Weight (kg) 11.9
Go
Gewiss Code GW85204M
Voltage 230 V - 50 Hz
Lamp power 400 W
Lamp supplied MT*
Lamp holder E40
Lamp current 3.4 A
Colour Smoke grey
Weight (kg) 10.4
Go
EQUIPMENT AND NOTES

Asymmetrical restricted beam optics

Wired versions with p.f. correction complete with lamp - IP65 - Class II
Wired versions with p.f. correction complete with lamp - IP65 - Class II
Gewiss Code
Voltage
Lamp power
Lamp supplied
Lamp holder
Lamp current
Colour
Weight (kg)

Gewiss Code GW85221S
Voltage 230 V - 50 Hz
Lamp power 250 W
Lamp supplied ST
Lamp holder E40
Lamp current 3 A
Colour Smoke grey
Weight (kg) 10.5
Go
Gewiss Code GW85221M
Voltage 230 V - 50 Hz
Lamp power 250 W
Lamp supplied MT
Lamp holder E40
Lamp current 3 A
Colour Smoke grey
Weight (kg) 10.5
Go
Gewiss Code GW85222M
Voltage 230 V - 50 Hz
Lamp power 250 W
Lamp supplied MT*
Lamp holder E40
Lamp current 2.2 A
Colour Smoke grey
Weight (kg) 9.7
Go
Gewiss Code GW85223S
Voltage 230 V - 50 Hz
Lamp power 400 W
Lamp supplied ST
Lamp holder E40
Lamp current 4.2 A
Colour Smoke grey
Weight (kg) 11.9
Go
Gewiss Code GW85223M
Voltage 230 V - 50 Hz
Lamp power 400 W
Lamp supplied MT
Lamp holder E40
Lamp current 4.2 A
Colour Smoke grey
Weight (kg) 11.9
Go
Gewiss Code GW85224M
Voltage 230 V - 50 Hz
Lamp power 400 W
Lamp supplied MT*
Lamp holder E40
Lamp current 3.4 A
Colour Smoke grey
Weight (kg) 10.4
Go
EQUIPMENT AND NOTES

Street optics

Complementary items

Symmetrical optics

Wired versions with p.f. correction complete with lamp - IP66 - Class I
Wired versions with p.f. correction complete with lamp - IP66 - Class I
Gewiss Code
Voltage
Lamp power
Lamp supplied
Lamp holder
Lamp current
Colour
Weight (kg)

Gewiss Code GW84015S
Voltage 230 V - 50 Hz
Lamp power 70 W
Lamp supplied SD
Lamp holder RX7s
Lamp current 1 A
Colour Aluminium
Weight (kg) 5.6
Go
Gewiss Code GW84015M
Voltage 230 V - 50 Hz
Lamp power 70 W
Lamp supplied MD
Lamp holder RX7s
Lamp current 1 A
Colour Aluminium
Weight (kg) 5.6
Go
Gewiss Code GW84016S
Voltage 230 V - 50 Hz
Lamp power 70 W
Lamp supplied ST*
Lamp holder E27
Lamp current 1 A
Colour Aluminium
Weight (kg) 5.7
Go
Gewiss Code GW84017M
Voltage 230 V - 50 Hz
Lamp power 100 W
Lamp supplied ME
Lamp holder E27
Lamp current 1.1 A
Colour Aluminium
Weight (kg) 5.8
Go
Gewiss Code GW84018S
Voltage 230 V - 50 Hz
Lamp power 150 W
Lamp supplied SD
Lamp holder RX7s
Lamp current 1.8 A
Colour Aluminium
Weight (kg) 6.8
Go
Gewiss Code GW84018M
Voltage 230 V - 50 Hz
Lamp power 150 W
Lamp supplied MD
Lamp holder RX7s
Lamp current 1.8 A
Colour Aluminium
Weight (kg) 6.8
Go
EQUIPMENT AND NOTES

Asymmetrical optics

Wired versions with p.f. correction complete with lamp - IP66 - Class I
Wired versions with p.f. correction complete with lamp - IP66 - Class I
Gewiss Code
Voltage
Lamp power
Lamp supplied
Lamp holder
Lamp current
Colour
Weight (kg)

Gewiss Code GW84033S
Voltage 230 V - 50 Hz
Lamp power 70 W
Lamp supplied SD
Lamp holder RX7s
Lamp current 1 A
Colour Aluminium
Weight (kg) 5.6
Go
Gewiss Code GW84033M
Voltage 230 V - 50 Hz
Lamp power 70 W
Lamp supplied MD
Lamp holder RX7s
Lamp current 1 A
Colour Aluminium
Weight (kg) 5.6
Go
Gewiss Code GW84034S
Voltage 230 V - 50 Hz
Lamp power 150 W
Lamp supplied SD
Lamp holder RX7s
Lamp current 1.8 A
Colour Aluminium
Weight (kg) 6.8
Go
Gewiss Code GW84034M
Voltage 230 V - 50 Hz
Lamp power 150 W
Lamp supplied MD
Lamp holder RX7s
Lamp current 1.8 A
Colour Aluminium
Weight (kg) 6.8
Go

Circular optics

Street optics

Wired versions with P.F. correction - IP66 - Class I
Wired versions with P.F. correction - IP66 - Class I
Gewiss Code
Voltage
Lamp power
Lamp
Lamp holder
Lamp current
Colour
Weight (kg)

Gewiss Code GW84051
Voltage 230 V - 50 Hz
Lamp power 35 W
Lamp MT
Lamp holder G12
Lamp current 0.5 A
Colour Graphite grey
Weight (kg) 4.9
Go
Gewiss Code GW84054
Voltage 230 V - 50 Hz
Lamp power 35 W
Lamp MT
Lamp holder G12
Lamp current 0.5 A
Colour Aluminium
Weight (kg) 4.9
Go
Gewiss Code GW84055
Voltage 230 V - 50 Hz
Lamp power 70 W
Lamp MT
Lamp holder G12
Lamp current 1 A
Colour Aluminium
Weight (kg) 5.6
Go
Gewiss Code GW84056
Voltage 230 V - 50 Hz
Lamp power 150 W
Lamp MT
Lamp holder G12
Lamp current 1.8 A
Colour Aluminium
Weight (kg) 6.8
Go

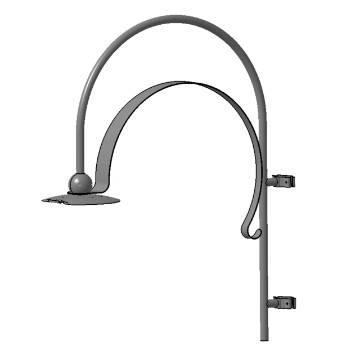

Brackets

Complementary items

Street optics

Complementary items

Symmetrical diffused optics

Asymmetrical diffused optics

Symmetrical restricted beam optics

Asymmetrical restricted beam optics

Wired versions with p.f. correction complete with lamp - IP66 - Class I
Wired versions with p.f. correction complete with lamp - IP66 - Class I
Gewiss Code
Voltage
Lamp power
Lamp supplied
Lamp holder
Lamp current
Colour
Weight (kg)

Gewiss Code GW84551S
Voltage 230 V - 50 Hz
Lamp power 250 W
Lamp supplied ST
Lamp holder E40
Lamp current 3 A
Colour Graphite grey
Weight (kg) 10.8
Go
Gewiss Code GW84552M
Voltage 230 V - 50 Hz
Lamp power 250 W
Lamp supplied MT*
Lamp holder E40
Lamp current 2.2 A
Colour Graphite grey
Weight (kg) 10
Go
Gewiss Code GW84553S
Voltage 230 V - 50 Hz
Lamp power 400 W
Lamp supplied ST
Lamp holder E40
Lamp current 4.2 A
Colour Graphite grey
Weight (kg) 12.2
Go
Gewiss Code GW84553M
Voltage 230 V - 50 Hz
Lamp power 400 W
Lamp supplied MT
Lamp holder E40
Lamp current 4.2 A
Colour Graphite grey
Weight (kg) 12.2
Go
Gewiss Code GW84554M
Voltage 230 V - 50 Hz
Lamp power 400 W
Lamp supplied MT*
Lamp holder E40
Lamp current 3.4 A
Colour Graphite grey
Weight (kg) 10.7
Go
EQUIPMENT AND NOTES

Asymmetrical diffused optics

Asymmetrical diffused optics

Asymmetrical restricted beam optics

Complementary items

Circular optics

EQUIPMENT AND NOTES

Complementary items

Symmetrical restricted beam optics

EQUIPMENT AND NOTES

Complementary items common to all Gewiss floodlights

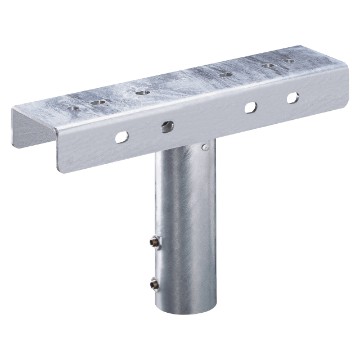

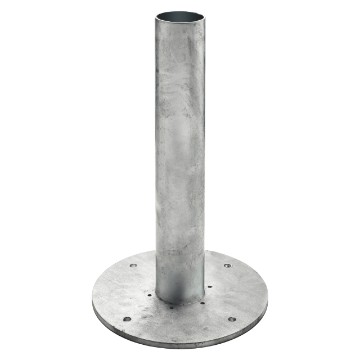

Pole couplings
Pole couplings
Gewiss Code
Description
For pole diameter (mm)
Length post head
Weight (kg)

EQUIPMENT AND NOTES

LED - ST1 Street optic

Urban lighting devices in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Urban lighting devices in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Gewiss Code
Voltage
Number of modules
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)

Gewiss Code GW87601
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 2 (2x16 LED)
Colour temperature 3500 K (CRI>85)
System power 54 W
Nominal flux (lm) 3940
Lumen output (lm) 3460
Colour Graphite grey
Weight (kg) 9.7
Go
Gewiss Code GW87602
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 3 (3x16 LED)
Colour temperature 3500 K (CRI>85)
System power 81 W
Nominal flux (lm) 5760
Lumen output (lm) 5050
Colour Graphite grey
Weight (kg) 10.3
Go
Gewiss Code GW87603
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 4 (4x16 LED)
Colour temperature 3500 K (CRI>85)
System power 105 W
Nominal flux (lm) 7540
Lumen output (lm) 6610
Colour Graphite grey
Weight (kg) 11
Go
Gewiss Code GW87606
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 5890
Colour Graphite grey
Weight (kg) 9.7
Go
Gewiss Code GW87621
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 2 (2x16 LED)
Colour temperature 3500 K (CRI>85)
System power 54 W
Nominal flux (lm) 3940
Lumen output (lm) 3460
Colour Graphite grey
Weight (kg) 9.7
Go
Gewiss Code GW87622
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 3 (3x16 LED)
Colour temperature 3500 K (CRI>85)
System power 81 W
Nominal flux (lm) 5760
Lumen output (lm) 5050
Colour Graphite grey
Weight (kg) 10.3
Go
Gewiss Code GW87623
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 4 (4x16 LED)
Colour temperature 3500 K (CRI>85)
System power 105 W
Nominal flux (lm) 7540
Lumen output (lm) 6610
Colour Graphite grey
Weight (kg) 11
Go
Gewiss Code GW87626
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 5890
Colour Graphite grey
Weight (kg) 9.7
Go
EQUIPMENT AND NOTES

LED - Cycle and pedestrian optic

Urban lighting devices in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Urban lighting devices in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Gewiss Code
Voltage
Number of modules
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)

Gewiss Code GWS7201
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 2 (2x16 LED)
Colour temperature 3500 K (CRI>85)
System power 54 W
Nominal flux (lm) 3940
Lumen output (lm) 3240
Colour Graphite grey
Weight (kg) 9.7
Go
Gewiss Code GWS7202
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 3 (3x16 LED)
Colour temperature 3500 K (CRI>85)
System power 81 W
Nominal flux (lm) 5760
Lumen output (lm) 4740
Colour Graphite grey
Weight (kg) 10.3
Go
Gewiss Code GWS7203
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 4 (4x16 LED)
Colour temperature 3500 K (CRI>85)
System power 105 W
Nominal flux (lm) 7540
Lumen output (lm) 6210
Colour Graphite grey
Weight (kg) 11
Go
Gewiss Code GWS7206
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 5520
Colour Graphite grey
Weight (kg) 9.7
Go
Gewiss Code GWS7221
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 2 (2x16 LED)
Colour temperature 3500 K (CRI>85)
System power 54 W
Nominal flux (lm) 3940
Lumen output (lm) 3240
Colour Graphite grey
Weight (kg) 9.7
Go
Gewiss Code GWS7222
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 3 (3x16 LED)
Colour temperature 3500 K (CRI>85)
System power 81 W
Nominal flux (lm) 5760
Lumen output (lm) 4740
Colour Graphite grey
Weight (kg) 10.3
Go
Gewiss Code GWS7223
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 4 (4x16 LED)
Colour temperature 3500 K (CRI>85)
System power 105 W
Nominal flux (lm) 7540
Lumen output (lm) 6210
Colour Graphite grey
Weight (kg) 11
Go
Gewiss Code GWS7226
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 5520
Colour Graphite grey
Weight (kg) 9.7
Go
EQUIPMENT AND NOTES

LED - Elliptical optic

Urban lighting devices in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Urban lighting devices in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Gewiss Code
Voltage
Number of modules
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)

Gewiss Code GWS7251
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 2 (2x16 LED)
Colour temperature 3500 K (CRI>85)
System power 54 W
Nominal flux (lm) 3940
Lumen output (lm) 3460
Colour Graphite grey
Weight (kg) 9.7
Go
Gewiss Code GWS7252
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 3 (3x16 LED)
Colour temperature 3500 K (CRI>85)
System power 81 W
Nominal flux (lm) 5760
Lumen output (lm) 5050
Colour Graphite grey
Weight (kg) 10.3
Go
Gewiss Code GWS7253
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 4 (4x16 LED)
Colour temperature 3500 K (CRI>85)
System power 105 W
Nominal flux (lm) 7540
Lumen output (lm) 6610
Colour Graphite grey
Weight (kg) 11
Go
Gewiss Code GWS7256
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 5890
Colour Graphite grey
Weight (kg) 9.7
Go
Gewiss Code GWS7271
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 2 (2x16 LED)
Colour temperature 3500 K (CRI>85)
System power 54 W
Nominal flux (lm) 3940
Lumen output (lm) 3460
Colour Graphite grey
Weight (kg) 9.7
Go
Gewiss Code GWS7272
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 3 (3x16 LED)
Colour temperature 3500 K (CRI>85)
System power 81 W
Nominal flux (lm) 5760
Lumen output (lm) 5050
Colour Graphite grey
Weight (kg) 10.3
Go
Gewiss Code GWS7273
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 4 (4x16 LED)
Colour temperature 3500 K (CRI>85)
System power 105 W
Nominal flux (lm) 7540
Lumen output (lm) 6610
Colour Graphite grey
Weight (kg) 11
Go
Gewiss Code GWS7276
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 5890
Colour Graphite grey
Weight (kg) 9.7
Go
EQUIPMENT AND NOTES

Pole fixing round side bracket

Wall-mounting fixing

LED - Cycle and pedestrian optic

EQUIPMENT AND NOTES

LED - ST1 Street optic

EQUIPMENT AND NOTES

LED - Elliptical optic

EQUIPMENT AND NOTES

LED - ST1 Street optic

Urban lighting devices in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Urban lighting devices in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Gewiss Code
Voltage
Number of modules
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)

Gewiss Code GW87901
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 2 (2x16 LED)
Colour temperature 3500 K (CRI>85)
System power 54 W
Nominal flux (lm) 3940
Lumen output (lm) 3460
Colour Graphite grey
Weight (kg) 8.2
Go
Gewiss Code GW87902
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 3 (3x16 LED)
Colour temperature 3500 K (CRI>85)
System power 81 W
Nominal flux (lm) 5760
Lumen output (lm) 5050
Colour Graphite grey
Weight (kg) 8.8
Go
Gewiss Code GW87903
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 4 (4x16 LED)
Colour temperature 3500 K (CRI>85)
System power 105 W
Nominal flux (lm) 7540
Lumen output (lm) 6610
Colour Graphite grey
Weight (kg) 9.5
Go
Gewiss Code GW87906
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 5890
Colour Graphite grey
Weight (kg) 8.2
Go
Gewiss Code GW87907
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 3 (3x16 LED)
Colour temperature 4000 K (CRI>70)
System power 81 W
Nominal flux (lm) 10230
Lumen output (lm) 8590
Colour Graphite grey
Weight (kg) 8.8
Go
Gewiss Code GW87908
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 4 (4x16 LED)
Colour temperature 4000 K (CRI>70)
System power 105 W
Nominal flux (lm) 13400
Lumen output (lm) 11240
Colour Graphite grey
Weight (kg) 9.5
Go
Gewiss Code GW87922
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 3 (3x16 LED)
Colour temperature 3500 K (CRI>85)
System power 81 W
Nominal flux (lm) 5760
Lumen output (lm) 5050
Colour Graphite grey
Weight (kg) 8.8
Go
Gewiss Code GW87923
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 4 (4x16 LED)
Colour temperature 3500 K (CRI>85)
System power 105 W
Nominal flux (lm) 7540
Lumen output (lm) 6610
Colour Graphite grey
Weight (kg) 9.5
Go
Gewiss Code GW87926
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 5890
Colour Graphite grey
Weight (kg) 8.2
Go
Gewiss Code GW87927
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 3 (3x16 LED)
Colour temperature 4000 K (CRI>70)
System power 81 W
Nominal flux (lm) 10230
Lumen output (lm) 8590
Colour Graphite grey
Weight (kg) 8.8
Go
Gewiss Code GW87928
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 4 (4x16 LED)
Colour temperature 4000 K (CRI>70)
System power 105 W
Nominal flux (lm) 13400
Lumen output (lm) 11240
Colour Graphite grey
Weight (kg) 9.5
Go
EQUIPMENT AND NOTES

LED - Cycle and pedestrian optic

Urban lighting devices in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Urban lighting devices in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Gewiss Code
Voltage
Number of modules
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)

Gewiss Code GWS7501
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 2 (2x16 LED)
Colour temperature 3500 K (CRI>85)
System power 54 W
Nominal flux (lm) 3940
Lumen output (lm) 3240
Colour Graphite grey
Weight (kg) 8.2
Go
Gewiss Code GWS7502
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 3 (3x16 LED)
Colour temperature 3500 K (CRI>85)
System power 81 W
Nominal flux (lm) 5760
Lumen output (lm) 4740
Colour Graphite grey
Weight (kg) 8.8
Go
Gewiss Code GWS7503
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 4 (4x16 LED)
Colour temperature 3500 K (CRI>85)
System power 105 W
Nominal flux (lm) 7540
Lumen output (lm) 6210
Colour Graphite grey
Weight (kg) 9.5
Go
Gewiss Code GWS7506
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 5520
Colour Graphite grey
Weight (kg) 8.2
Go
Gewiss Code GWS7507
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 3 (3x16 LED)
Colour temperature 4000 K (CRI>70)
System power 81 W
Nominal flux (lm) 10230
Lumen output (lm) 8060
Colour Graphite grey
Weight (kg) 8.8
Go
Gewiss Code GWS7508
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 4 (4x16 LED)
Colour temperature 4000 K (CRI>70)
System power 105 W
Nominal flux (lm) 13400
Lumen output (lm) 10560
Colour Graphite grey
Weight (kg) 9.5
Go
Gewiss Code GWS7521
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 2 (2x16 LED)
Colour temperature 3500 K (CRI>85)
System power 54 W
Nominal flux (lm) 3940
Lumen output (lm) 3240
Colour Graphite grey
Weight (kg) 8.2
Go
Gewiss Code GWS7522
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 3 (3x16 LED)
Colour temperature 3500 K (CRI>85)
System power 81 W
Nominal flux (lm) 5760
Lumen output (lm) 4740
Colour Graphite grey
Weight (kg) 8.8
Go
Gewiss Code GWS7523
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 4 (4x16 LED)
Colour temperature 3500 K (CRI>85)
System power 105 W
Nominal flux (lm) 7540
Lumen output (lm) 6210
Colour Graphite grey
Weight (kg) 9.5
Go
Gewiss Code GWS7526
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 5520
Colour Graphite grey
Weight (kg) 8.2
Go
Gewiss Code GWS7527
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 3 (3x16 LED)
Colour temperature 4000 K (CRI>70)
System power 81 W
Nominal flux (lm) 10230
Lumen output (lm) 8060
Colour Graphite grey
Weight (kg) 8.8
Go
Gewiss Code GWS7528
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 4 (4x16 LED)
Colour temperature 4000 K (CRI>70)
System power 105 W
Nominal flux (lm) 13400
Lumen output (lm) 10560
Colour Graphite grey
Weight (kg) 9.5
Go
EQUIPMENT AND NOTES

LED - Elliptical optic

Urban lighting devices in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Urban lighting devices in die-cast aluminium - IP66 LED modules powered at 550 mA with PMMA lenses
Gewiss Code
Voltage
Number of modules
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)

Gewiss Code GWS7552
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 3 (3x16 LED)
Colour temperature 3500 K (CRI>85)
System power 81 W
Nominal flux (lm) 5760
Lumen output (lm) 5050
Colour Graphite grey
Weight (kg) 8.8
Go
Gewiss Code GWS7553
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 4 (4x16 LED)
Colour temperature 3500 K (CRI>85)
System power 105 W
Nominal flux (lm) 7540
Lumen output (lm) 6610
Colour Graphite grey
Weight (kg) 9.5
Go
Gewiss Code GWS7556
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 5890
Colour Graphite grey
Weight (kg) 8.2
Go
Gewiss Code GWS7557
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 3 (3x16 LED)
Colour temperature 4000 K (CRI>70)
System power 81 W
Nominal flux (lm) 10230
Lumen output (lm) 8590
Colour Graphite grey
Weight (kg) 8.8
Go
Gewiss Code GWS7558
Voltage 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
Number of modules 4 (4x16 LED)
Colour temperature 4000 K (CRI>70)
System power 105 W
Nominal flux (lm) 13400
Lumen output (lm) 11240
Colour Graphite grey
Weight (kg) 9.5
Go
Gewiss Code GWS7571
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 2 (2x16 LED)
Colour temperature 3500 K (CRI>85)
System power 54 W
Nominal flux (lm) 3940
Lumen output (lm) 3460
Colour Graphite grey
Weight (kg) 8.2
Go
Gewiss Code GWS7572
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 3 (3x16 LED)
Colour temperature 3500 K (CRI>85)
System power 81 W
Nominal flux (lm) 5760
Lumen output (lm) 5050
Colour Graphite grey
Weight (kg) 8.8
Go
Gewiss Code GWS7573
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 4 (4x16 LED)
Colour temperature 3500 K (CRI>85)
System power 105 W
Nominal flux (lm) 7540
Lumen output (lm) 6610
Colour Graphite grey
Weight (kg) 9.5
Go
Gewiss Code GWS7576
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 2 (2x16 LED)
Colour temperature 4000 K (CRI>70)
System power 54 W
Nominal flux (lm) 7020
Lumen output (lm) 5890
Colour Graphite grey
Weight (kg) 8.2
Go
Gewiss Code GWS7577
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 3 (3x16 LED)
Colour temperature 4000 K (CRI>70)
System power 81 W
Nominal flux (lm) 10230
Lumen output (lm) 8590
Colour Graphite grey
Weight (kg) 8.8
Go
Gewiss Code GWS7578
Voltage 220/240 V - 50/60 Hz - Bi-power with self-learning
Number of modules 4 (4x16 LED)
Colour temperature 4000 K (CRI>70)
System power 105 W
Nominal flux (lm) 13400
Lumen output (lm) 11240
Colour Graphite grey
Weight (kg) 9.5
Go
EQUIPMENT AND NOTES

Fixing accessories

Poles

Accessories for poles with slots

Pole support base for external assembly
Pole support base for external assembly
Gewiss Code
Material
Weight (kg)
