SERIES DETAIL
IB Range<br />Interlocked socket-outlets IEC 309 standards

IB Range
Interlocked socket-outlets IEC 309 standards

The 67 IB range is a system of vertical industrial socket-outlets for energy distribution in the commercial and industrial sectors . All products in the range are equipped with an interlock switch, enabling them to meet all the professional needs of installers and control panel operators. The IB range is composed of 4 product lines: IP67 standard vertical socket-outlets, IP66 vertical socket-outlets for heavy duty applications, IP44 horizontal socket-outlets and IP44 and IP55 compact socket-outlets.

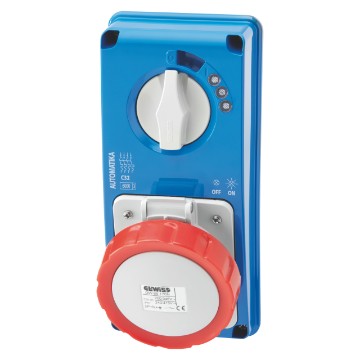

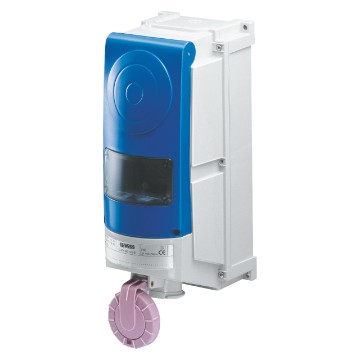

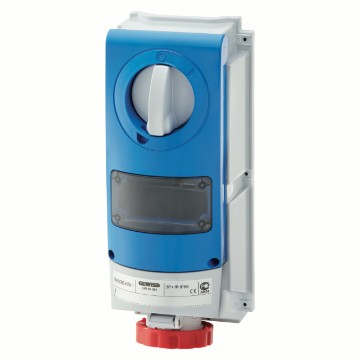

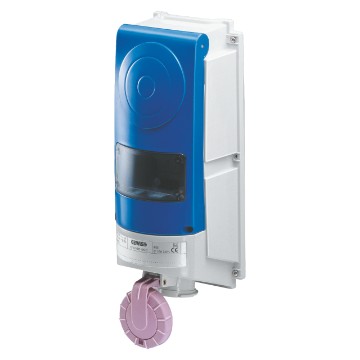

AUTOMATIKA - with circuit breaker protection (MCB), without bottom - IP67

Automatika vertical interlocked socket-outlets with miniature circuit breaker MT 6kA C characteristic - 50/60Hz - IP67
Automatika vertical interlocked socket-outlets with miniature circuit breaker MT 6kA C characteristic - 50/60Hz - IP67
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Reference h

Gewiss Code GW66151N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66152N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66153N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66154N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66155N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66156N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66157N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66158N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66159N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66162N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66163N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66164N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66165N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66166N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66167N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66168N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66169N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66170N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
EQUIPMENT AND NOTES

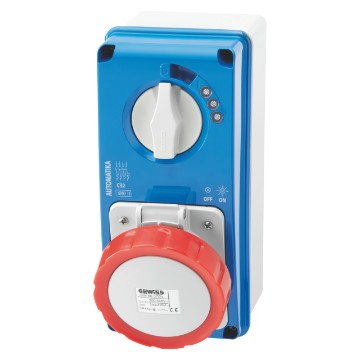

AUTOMATIKA - with circuit breaker protection (MCB), with bottom - IP67

Automatika vertical interlocked socket-outlets with miniature circuit breaker MT 6kA C characteristic - 50/60Hz - IP67
Automatika vertical interlocked socket-outlets with miniature circuit breaker MT 6kA C characteristic - 50/60Hz - IP67
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Reference h

Gewiss Code GW66051N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66052N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66053N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66054N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66055N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66056N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66057N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66058N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66059N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66062N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66063N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66064N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66065N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66066N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66067N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66068N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66069N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66070N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
EQUIPMENT AND NOTES

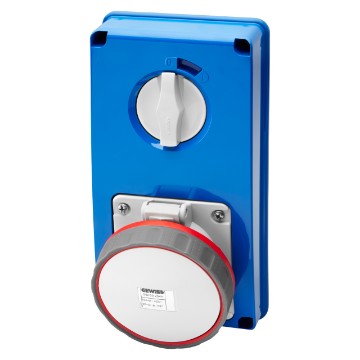

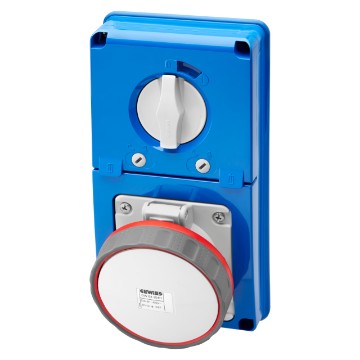

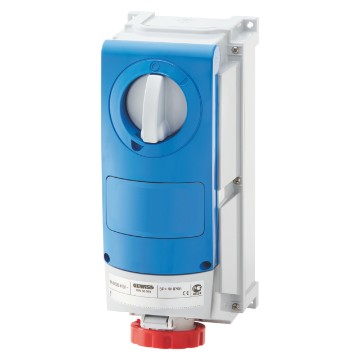

With rotary switch, without fuse-holder base (SBF), without bottom - IP67

Interlocked vertical socket-outlets with rotary switch without fuse-holder base without bottom - 50/60Hz - IP67
Interlocked vertical socket-outlets with rotary switch without fuse-holder base without bottom - 50/60Hz - IP67
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Reference h

Gewiss Code GW66301N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66302N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66303N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66304N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66305N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66306N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66307N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66308N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66309N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66310N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66311N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66312N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66313N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66314N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66315N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66316N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66317N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66318N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66319N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66320N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66321N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66322N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66357N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 440 V
Colour Red
Reference h 3
Go

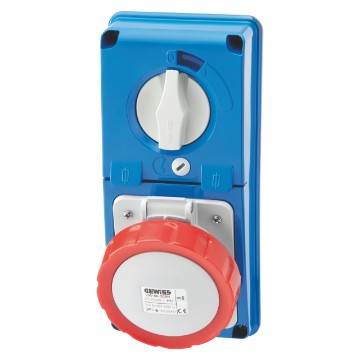

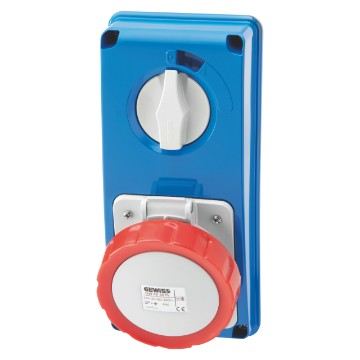

Interlocked switched vertical socket-outlets without bottom - with rotary switch without fuse-holder base - 63A - 50/60Hz - IP67
Interlocked switched vertical socket-outlets without bottom - with rotary switch without fuse-holder base - 63A - 50/60Hz - IP67
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Reference h

Gewiss Code GW67356N
Rated current (A) 63
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW67357N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW67358N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW67359N
Rated current (A) 63
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW67360N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW67361N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW67362N
Rated current (A) 63
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW67363N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW67364N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW67365N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW67366N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
EQUIPMENT AND NOTES

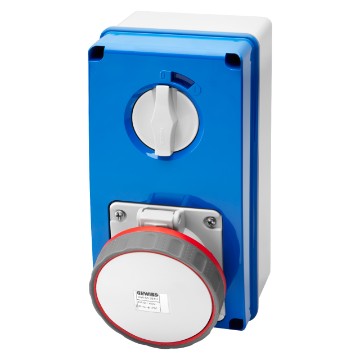

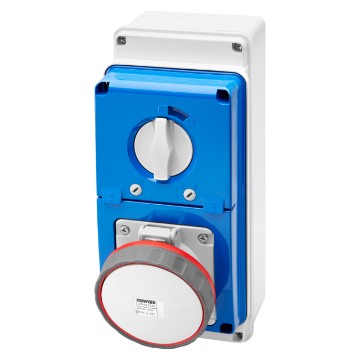

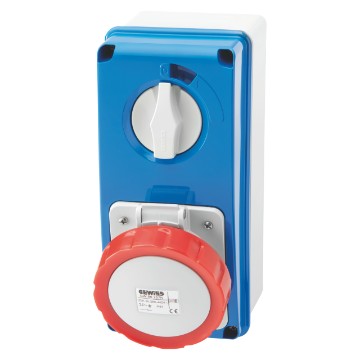

With rotary switch, without fuse-holder base (SBF), with bottom - IP67

Interlocked vertical socket-outlets with bottom with rotary switch without fuse-holder base - 50/60Hz - IP67
Interlocked vertical socket-outlets with bottom with rotary switch without fuse-holder base - 50/60Hz - IP67
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Reference h

Gewiss Code GW66201N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66202N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66203N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66204N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66205N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66206N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66207N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66208N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66209N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66210N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66211N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66212N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66213N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66214N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66215N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66216N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66217N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66218N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66219N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66220N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66221N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66222N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66257N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 440 V
Colour Red
Reference h 3
Go
EQUIPMENT AND NOTES
Interlocked switched vertical socket-outlets with bottom and rotary switch without fuse-holder base - 63A - 50/60Hz - IP67
Interlocked switched vertical socket-outlets with bottom and rotary switch without fuse-holder base - 63A - 50/60Hz - IP67
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Reference h

Gewiss Code GW67256N
Rated current (A) 63
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW67257N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW67258N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW67259N
Rated current (A) 63
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW67260N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW67261N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW67262N
Rated current (A) 63
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW67263N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW67264N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW67265N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW67266N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

With rotary switch and fuse-holder base (CBF) without bottom - IP67

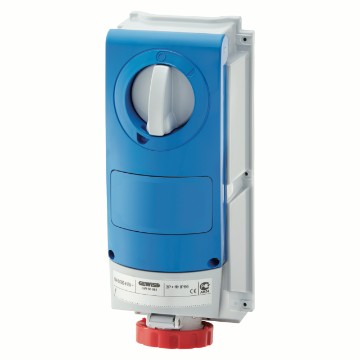

Interlocked vertical socket-outlets without bottom with rotary switch and fuse-holder base - 50/60Hz - IP67
Interlocked vertical socket-outlets without bottom with rotary switch and fuse-holder base - 50/60Hz - IP67
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Type of fuse
Reference h

Gewiss Code GW66323N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66324N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66325N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66326N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66327N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66328N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66329N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66330N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66331N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66332N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66333N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66334N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66335N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66336N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66337N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66338N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66339N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66340N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66341N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66342N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66343N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66344N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66358N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 440 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 3
Go
EQUIPMENT AND NOTES
Interlocked switched vertical socket-outlets without bottom - with rotary switch and fuse-holder base - 63A - 50/60Hz - IP67
Interlocked switched vertical socket-outlets without bottom - with rotary switch and fuse-holder base - 63A - 50/60Hz - IP67
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Type of fuse
Reference h

Gewiss Code GW66345N
Rated current (A) 63
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 22x58 mm
Reference h 4
Go
Gewiss Code GW66346N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 22x58 mm
Reference h 4
Go
Gewiss Code GW66347N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 22x58 mm
Reference h 4
Go
Gewiss Code GW66348N
Rated current (A) 63
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 22x58 mm
Reference h 6
Go
Gewiss Code GW66349N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 22x58 mm
Reference h 9
Go
Gewiss Code GW66350N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 22x58 mm
Reference h 9
Go
Gewiss Code GW66351N
Rated current (A) 63
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 22x58 mm
Reference h 9
Go
Gewiss Code GW66352N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 22x58 mm
Reference h 6
Go
Gewiss Code GW66353N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 22x58 mm
Reference h 6
Go
Gewiss Code GW66354N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 22x58 mm
Reference h 7
Go
Gewiss Code GW66355N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 22x58 mm
Reference h 7
Go
EQUIPMENT AND NOTES

With rotary switch and fuse-holder base (CBF) with bottom - IP67

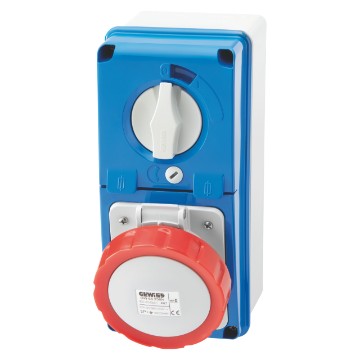

Interlocked vertical socket-outlets with bottom with rotary switch and fuse-holder base - 50/60Hz - IP67
Interlocked vertical socket-outlets with bottom with rotary switch and fuse-holder base - 50/60Hz - IP67
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Type of fuse
Reference h

Gewiss Code GW66223N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66224N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66225N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66226N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66227N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66228N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66229N
Rated current (A) 16
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66230N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66231N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66232N
Rated current (A) 16
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66233N
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66234N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66235N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66236N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66237N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66238N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66239N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66240N
Rated current (A) 32
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66241N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66242N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66243N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66244N
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66258N
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 440 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 3
Go
EQUIPMENT AND NOTES
Interlocked switched vertical socket-outlets with bottom - with rotary switch and fuse-holder base - 63A - 50/60Hz - IP67
Interlocked switched vertical socket-outlets with bottom - with rotary switch and fuse-holder base - 63A - 50/60Hz - IP67
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Type of fuse
Reference h

Gewiss Code GW67245N
Rated current (A) 63
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 22x58 mm
Reference h 4
Go
Gewiss Code GW67246N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 22x58 mm
Reference h 4
Go
Gewiss Code GW67247N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 22x58 mm
Reference h 4
Go
Gewiss Code GW67248N
Rated current (A) 63
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 22x58 mm
Reference h 6
Go
Gewiss Code GW67249N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 22x58 mm
Reference h 9
Go
Gewiss Code GW67250N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 22x58 mm
Reference h 9
Go
Gewiss Code GW67251N
Rated current (A) 63
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 22x58 mm
Reference h 9
Go
Gewiss Code GW67252N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 22x58 mm
Reference h 6
Go
Gewiss Code GW67253N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 22x58 mm
Reference h 6
Go
Gewiss Code GW67254N
Rated current (A) 63
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 22x58 mm
Reference h 7
Go
Gewiss Code GW67255N
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 22x58 mm
Reference h 7
Go
EQUIPMENT AND NOTES

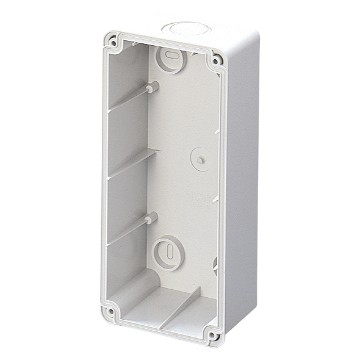

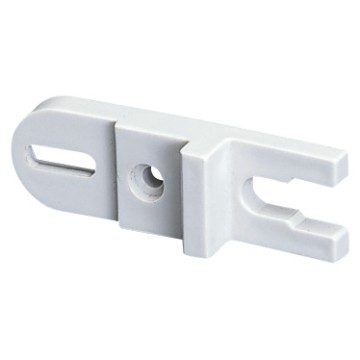

Components for vertical socket-outlets IP67

EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

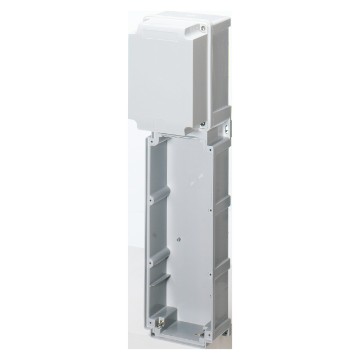

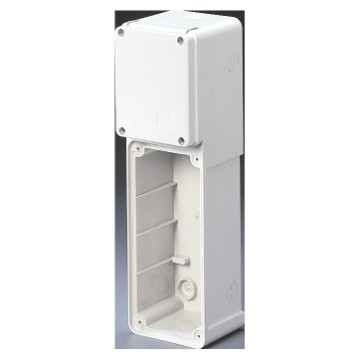

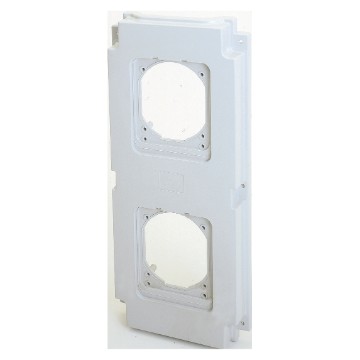

Modular bases for mounting combinations of fixed vertical socket-outlets - IP65
Modular bases for mounting combinations of fixed vertical socket-outlets - IP65
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

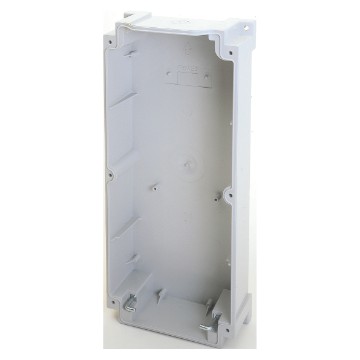

Box with frame for lightweight and plasterboard walls, for the flush-mounting assembly of vertical socket-outlets - IP55
Box with frame for lightweight and plasterboard walls, for the flush-mounting assembly of vertical socket-outlets - IP55
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

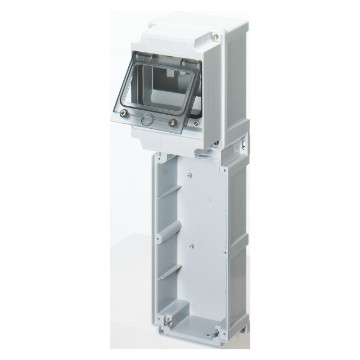

Distribution boards for vertical socket-outlets - IP65

Q-DIN 10/14/20 watertight boards - unwired - RAL 7035 - IP65
Q-DIN 10/14/20 watertight boards - unwired - RAL 7035 - IP65
Gewiss Code
No. of modules EN 50022
No. IB socket-outlets houseable
No. of provided blank lids
Dispersible power A (W)
Dispersible power B (W)

Gewiss Code GW68025N
No. of modules EN 50022 10
No. IB socket-outlets houseable 2 IB Vert. 16-32A IP67
No. of provided blank lids 1 IB 16/32A
Dispersible power A (W) 16
Dispersible power B (W) 42
Go
Gewiss Code GW68010N
No. of modules EN 50022 14
No. IB socket-outlets houseable 3 IB Vert. 16/32A IP67
No. of provided blank lids 1 IB 16/32A
Dispersible power A (W) 24
Dispersible power B (W) 64
Go
Gewiss Code GW68015N
No. of modules EN 50022 20
No. IB socket-outlets houseable 4IB 16/32A IP67 + 4 IEC MAX 3P+E 16A
No. of provided blank lids 2 IB 16/32A + 4 IEC 16A
Dispersible power A (W) 30
Dispersible power B (W) 92
Go
Gewiss Code GW68022N
No. of modules EN 50022 20
No. IB socket-outlets houseable 1 IB Vert. 63A IP67 + 2 IB Vert. 16/32A IP67
No. of provided blank lids 1 IB 16/32A
Dispersible power A (W) 30
Dispersible power B (W) 92
Go
EQUIPMENT AND NOTES

Without bottom and without fuse-holder base - IP66

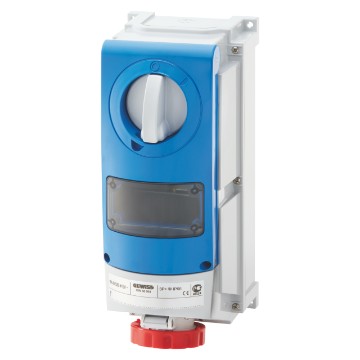

Vertical interlocked socket-outlets - 50/60Hz
Vertical interlocked socket-outlets - 50/60Hz
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Reference h

Gewiss Code GW66535
Rated current (A) 16
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66536
Rated current (A) 16
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66537
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66538
Rated current (A) 16
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66539
Rated current (A) 16
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66540
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66541
Rated current (A) 16
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66542
Rated current (A) 16
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66543
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66544
Rated current (A) 16
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66545
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66546
Rated current (A) 32
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66547
Rated current (A) 32
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66548
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66549
Rated current (A) 32
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66550
Rated current (A) 32
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66551
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66552
Rated current (A) 32
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66553
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66554
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66555
Rated current (A) 32
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66556
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66557
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 440 V
Colour Red
Reference h 3
Go
EQUIPMENT AND NOTES

With bottom and without fuse-holder base - IP66

Vertical interlocked socket-outlets - 50/60Hz
Vertical interlocked socket-outlets - 50/60Hz
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Reference h

Gewiss Code GW66501
Rated current (A) 16
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66502
Rated current (A) 16
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66503
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66504
Rated current (A) 16
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66505
Rated current (A) 16
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66506
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66507
Rated current (A) 16
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66508
Rated current (A) 16
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66509
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66510
Rated current (A) 16
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66511
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66512
Rated current (A) 32
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66513
Rated current (A) 32
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66514
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66515
Rated current (A) 32
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66516
Rated current (A) 32
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66517
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66518
Rated current (A) 32
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66519
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66520
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66521
Rated current (A) 32
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66522
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66523
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 440 V
Colour Red
Reference h 3
Go
Gewiss Code GW66524
Rated current (A) 63
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66525
Rated current (A) 63
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66526
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66527
Rated current (A) 63
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66528
Rated current (A) 63
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66529
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66530
Rated current (A) 63
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66531
Rated current (A) 63
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66532
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66533
Rated current (A) 63
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66534
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
EQUIPMENT AND NOTES

Without bottom for mounting modular devices - IP66

Vertical interlocked socket-outlets  for mounting modular devices - 50/60Hz
Vertical interlocked socket-outlets for mounting modular devices - 50/60Hz
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Reference h

Gewiss Code GW66824
Rated current (A) 16
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66825
Rated current (A) 16
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66826
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66827
Rated current (A) 16
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66828
Rated current (A) 16
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66829
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66830
Rated current (A) 16
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66831
Rated current (A) 16
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66832
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66833
Rated current (A) 16
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66834
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66835
Rated current (A) 32
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66836
Rated current (A) 32
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66837
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66838
Rated current (A) 32
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66839
Rated current (A) 32
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66840
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66841
Rated current (A) 32
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66842
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66843
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66844
Rated current (A) 32
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66845
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66846
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 440 V
Colour Red
Reference h 3
Go
EQUIPMENT AND NOTES

With bottom for mounting modular devices - IP66

Vertical interlocked socket-outlets for mounting modular devices - 50/60Hz
Vertical interlocked socket-outlets for mounting modular devices - 50/60Hz
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Reference h

Gewiss Code GW66974
Rated current (A) 16
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66975
Rated current (A) 16
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66976
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66977
Rated current (A) 16
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66978
Rated current (A) 16
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66979
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66980
Rated current (A) 16
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66981
Rated current (A) 16
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66982
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66983
Rated current (A) 16
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66984
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66985
Rated current (A) 32
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66986
Rated current (A) 32
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66987
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66988
Rated current (A) 32
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66989
Rated current (A) 32
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66990
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66991
Rated current (A) 32
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66992
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66993
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66994
Rated current (A) 32
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66995
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66996
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 440 V
Colour Red
Reference h 3
Go
Gewiss Code GW66866
Rated current (A) 63
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66867
Rated current (A) 63
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66868
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66869
Rated current (A) 63
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66870
Rated current (A) 63
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66871
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66872
Rated current (A) 63
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66873
Rated current (A) 63
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66874
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66875
Rated current (A) 63
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66876
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
EQUIPMENT AND NOTES

Without bottom with fuse holder base - IP66

Vertical interlocked socket-outlets and fuse holder base - 50/60Hz
Vertical interlocked socket-outlets and fuse holder base - 50/60Hz
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Type of fuse
Reference h

Gewiss Code GW66801
Rated current (A) 16
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66802
Rated current (A) 16
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66803
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66804
Rated current (A) 16
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66805
Rated current (A) 16
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66806
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66807
Rated current (A) 16
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66808
Rated current (A) 16
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66809
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66810
Rated current (A) 16
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66811
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66812
Rated current (A) 32
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66813
Rated current (A) 32
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66814
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66815
Rated current (A) 32
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66816
Rated current (A) 32
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66817
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66818
Rated current (A) 32
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66819
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66820
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66821
Rated current (A) 32
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66822
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66823
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 440 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 3
Go
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

With bottom with fuse holder base - IP66

Vertical interlocked socket-outlets and fuse holder base - 50/60Hz
Vertical interlocked socket-outlets and fuse holder base - 50/60Hz
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Type of fuse
Reference h

Gewiss Code GW66951
Rated current (A) 16
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66952
Rated current (A) 16
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66953
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66954
Rated current (A) 16
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66955
Rated current (A) 16
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66956
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66957
Rated current (A) 16
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66958
Rated current (A) 16
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66959
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66960
Rated current (A) 16
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66961
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66962
Rated current (A) 32
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66963
Rated current (A) 32
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66964
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 10.3x38 mm
Reference h 4
Go
Gewiss Code GW66965
Rated current (A) 32
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66966
Rated current (A) 32
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66967
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66968
Rated current (A) 32
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 9
Go
Gewiss Code GW66969
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66970
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 6
Go
Gewiss Code GW66971
Rated current (A) 32
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66972
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 10.3x38 mm
Reference h 7
Go
Gewiss Code GW66973
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 440 V
Colour Red
Type of fuse Ø 10.3x38 mm
Reference h 3
Go
Gewiss Code GW66847
Rated current (A) 63
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 22x58 mm
Reference h 4
Go
Gewiss Code GW66848
Rated current (A) 63
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 22x58 mm
Reference h 4
Go
Gewiss Code GW66849
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Type of fuse Ø 22x58 mm
Reference h 4
Go
Gewiss Code GW66850
Rated current (A) 63
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 22x58 mm
Reference h 6
Go
Gewiss Code GW66851
Rated current (A) 63
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 22x58 mm
Reference h 9
Go
Gewiss Code GW66852
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Type of fuse Ø 22x58 mm
Reference h 9
Go
Gewiss Code GW66853
Rated current (A) 63
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 22x58 mm
Reference h 9
Go
Gewiss Code GW66854
Rated current (A) 63
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 22x58 mm
Reference h 6
Go
Gewiss Code GW66855
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Type of fuse Ø 22x58 mm
Reference h 6
Go
Gewiss Code GW66856
Rated current (A) 63
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 22x58 mm
Reference h 7
Go
Gewiss Code GW66857
Rated current (A) 63
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Type of fuse Ø 22x58 mm
Reference h 7
Go
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

Complementary items for interlocked socket-outlets - IP66

EQUIPMENT AND NOTES
Modular bases for combination mounting of vertical socket-outlets for heavy-duty use - IP66
Modular bases for combination mounting of vertical socket-outlets for heavy-duty use - IP66
EQUIPMENT AND NOTES
Modular bases with panel and with window with EN 50022 din rail - IP66
Modular bases with panel and with window with EN 50022 din rail - IP66
Gewiss Code
Houseable interloc. socket
Houseable IB socket-outlets
Side entries
Top entries
Bottom entries
No. of modules EN 50022
Dispersible power (W)

Gewiss Code GW66781
Houseable interloc. socket 1
Houseable IB socket-outlets 16/32 A SELV
Side entries 2xØ 23
Top entries 2xØ 23/29
Bottom entries -
No. of modules EN 50022 6
Dispersible power (W) 18
Go
Gewiss Code GW66782
Houseable interloc. socket 2
Houseable IB socket-outlets 16/32 A SELV
Side entries 4xØ 23
Top entries 4xØ 23/29
Bottom entries 1xØ 29/37
No. of modules EN 50022 12
Dispersible power (W) 27
Go
Gewiss Code GW66783
Houseable interloc. socket 3
Houseable IB socket-outlets 16/32 A SELV
Side entries 2xØ 23
Top entries 5xØ 23/29
Bottom entries 1xØ 29/37
No. of modules EN 50022 18
Dispersible power (W) 34
Go
Gewiss Code GW66784
Houseable interloc. socket 1
Houseable IB socket-outlets 63 A
Side entries 6xØ 23
Top entries 2xØ 37/48
Bottom entries -
No. of modules EN 50022 6
Dispersible power (W) 18
Go
EQUIPMENT AND NOTES
EQUIPMENT AND NOTES

With miniature circuit breaker - IP55

Watertight vertical surface-mounting socket-outlets with electric interlock Circuit breaker protection - In 125A - 50/60Hz
Watertight vertical surface-mounting socket-outlets with electric interlock Circuit breaker protection - In 125A - 50/60Hz
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Reference h

Gewiss Code GW66581
Rated current (A) 125
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66582
Rated current (A) 125
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66583
Rated current (A) 125
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66584
Rated current (A) 125
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66585
Rated current (A) 125
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66586
Rated current (A) 125
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66587
Rated current (A) 125
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66588
Rated current (A) 125
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
EQUIPMENT AND NOTES

With residual current miniature circuit breaker - IP55

Watertight vertical surface-mounting socket-outlets with electric interlock  Residual current circuit breaker protection - In 125A - 50/60Hz
Watertight vertical surface-mounting socket-outlets with electric interlock Residual current circuit breaker protection - In 125A - 50/60Hz
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Reference h

Gewiss Code GW66591
Rated current (A) 125
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66592
Rated current (A) 125
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66593
Rated current (A) 125
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66594
Rated current (A) 125
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66595
Rated current (A) 125
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66596
Rated current (A) 125
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66597
Rated current (A) 125
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66598
Rated current (A) 125
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
EQUIPMENT AND NOTES

Without bottom, without fuse-holder base - IP44

Horizontal interlocked socket outlets - 50/60Hz
Horizontal interlocked socket outlets - 50/60Hz
Gewiss Code
Rated current (A)
No. of poles
Rated voltage
Colour
Reference h

Gewiss Code GW66101
Rated current (A) 16
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66102
Rated current (A) 16
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66103
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66104
Rated current (A) 16
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66105
Rated current (A) 16
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66106
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66107
Rated current (A) 16
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66108
Rated current (A) 16
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66109
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66110
Rated current (A) 16
No. of poles 3P+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66111
Rated current (A) 16
No. of poles 3P+N+E
Rated voltage 480 - 500 V
Colour Black
Reference h 7
Go
Gewiss Code GW66112
Rated current (A) 32
No. of poles 2P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66113
Rated current (A) 32
No. of poles 3P+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66114
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 100 - 130 V
Colour Yellow
Reference h 4
Go
Gewiss Code GW66115
Rated current (A) 32
No. of poles 2P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 6
Go
Gewiss Code GW66116
Rated current (A) 32
No. of poles 3P+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66117
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 200 - 250 V
Colour Blue
Reference h 9
Go
Gewiss Code GW66118
Rated current (A) 32
No. of poles 2P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 9
Go
Gewiss Code GW66119
Rated current (A) 32
No. of poles 3P+E
Rated voltage 380 - 415 V
Colour Red
Reference h 6
Go
Gewiss Code GW66120
Rated current (A) 32
No. of poles 3P+N+E
Rated voltage 380 - 415 V
Colour Red
