Série DATA CENTER Cablagem estruturada

CHARACTERISTICS: made in powder coated metal with a textured finish. The building optical service cabinet consists of two compartments, each protected by a lock: font and side. The front compartment includes: fixing system for the fibres, housing area for the optic splitter (GW38306, GW38307, GW38308, GW38309), and the patch panel (GW38320). In addition, there is a rack mount for adapters (which may be removed if necessary), to house the service fibres not in use. The side compartment is reserved as a permutation area for TLC operators and can accommodate up to 34 SC/APC adapters (not supplied). The tray has pre-drilled holes (Ø22mm, Ø50mm, Ø60mm) and an adjustable slot for the passage of optic cables. The building optical service cabinet can handle a maximum of 16 flats and can be used both for building optical service and distribution.
ACCESSORIES SUPPLIED: two sets of 2 keys for separate access to each compartment, accessory fixing screws, 2 nylon cable ties.
NOTES: wall-mounted with wall plugs. Alternatively, it may be housed in the distribution box/19"-rack cabinet using the support brackets GW38322 (not included), with an occupation of 4U. The trays can be stacked vertically thanks to folding flaps.

CHARACTERISTICS: made from sheet steel, powder coated and texture finish. The cabinet comes with a large interior space to accomodate the excess part of the optical fiber cables. It is provided with knock outs (Ø60mm) and an adjustable slot for the passage of the optical fiber cables.
NOTES: wall mounting with wall plugs. As an alternative, the cabinet can be mounted into 19" rack cabinets thanks to the GW38322 brackets (not included), with an occupation of 5 rack units. The cabinets can be stacked vertically thanks to foldable wings.

CHARACTERISTICS: fitted with SC/APC input/output adapters for single-mode fibers.
NOTES: screw fastening on the rack of the building optical services cabinet (GW38303).

CHARACTERISTICS: made of plastic material. The panel can house up to 9 SC/APC adapters (e.g.: GW38326) not included.
NOTES: screw fastening on the rack of the building optical services cabinet (GW38303).

CHARACTERISTICS: made of plastic material.
NOTES: snap-in mounting in the building optical services cabinet (GW38303).

CHARACTERISTICS: made from sheet steel, powder coated and texture finish.
ACCESSORIES SUPPLIED: screws for fixing the brackets to the GW38303 or GW38302 cabinets.
NOTES: the brackets allow GW38303 and GW38302 to be mounted in 19" rack cabinets.

* Adapters not included
CHARACTERISTICS: plastic enclosure with 180° opening door and lockable closure. The building fibre termination box has 2 cable inputs, 12 outlets for fibre optic cables, flip splice tray, internal guides for excess part of the optical fibres, Suitable for housing up to 12 SC/APC adapters (e.g. GW38326) not included.
ACCESSORIES SUPPLIED: set of 2 keys, 3 wall plugs, 4 cable ties, 12 heat-shrink tubing for fibre joints, 12 cable glands.

CHARACTERISTICS: plastic enclosure with removable snap-on lid and guides, flip splice tray and internal guides to accommodate the excess part of the optical fibres. The apartment termination box comes complete with 4 SC/APC adapters with security and dust protection doors and knockouts on all sides for cable inputs.
ACCESSORIES SUPPLIED: 4 heat-shrink tubes for fibre joints, 2 wall plugs.
NOTES: option to house the apartment termination box in the apartment multimedia distribution board.

CHARACTERISTICS: plastic enclosure with removable snap-on lid and internal rails for the management of the excess cables. The apartment termination boxes are supplied with 4 SC/APC adapters with safety and dust protection door, they are pre-wired with 4-fibre optic cable: single-mode G.657.A2, bend insensitive, LSZH sheath. On one end of the optic cable there is a Kevlar draw-string system to protect the SC/APC termination, to complete, after laying in ducts, with the 4 (toolless) sleeves provided.
ACCESSORIES SUPPLIED: the articles are supplied in a carboard box complete with the apartment termination box and a cable hank. The package includes 2 wall-plugs.
NOTES: option to house the apartment termination box in the apartment multimedia distribution board.

CHARACTERISTICS: made of coated metal. The apartment termination box is designed to accommodate up to 8 SC/APC adaptors (e.g. GW38326). If completed with 8 adaptors and inserted in a suitable flush-mounting/wall-mounting box, it can also be used to function as the building fibre termination box.
ACCESSORIES SUPPLIED: 4 SC/APC adaptors, fixing screws.
NOTES: mounting on the bottom of flush-mounting junction boxes for concrete walls (e.g. GW48006), lightweight and plasterboard walls (e.g. GW48006PM) or for mounting in wall-boxes (e.g. GW44207).

APPLICATIONS: multimedia Enclosures allow the distribution of the services through the apartment (e.g. internet, phone, satellite TV, etc.). The compact version is dedicated to small apartments with a small amount of services.
FEATURES: the product is compliant to the CEI 306-2 Guide. The back box features plastic tab for an easier installation on metal frames and drywall panels. The product can be joint vertically with other enclosures of the the CDKi range (minimum size 36 DIN modules) through the GW40425 tool.
ACCESSORIES SUPPLIED: the GW40390C is composed of 1 pc front cover with blank door, 1 pc detachable frame with 2 pcs perforated mounting plates (1 pc with 18 Keystone Jack slot), 2 m velcro roll h=16 mm, 4 pcs brackets, 4 pcs self-adhesive cable clips with cable ties, 5 pcs. RJ45 Cat.6 Keystone Jack.
INSTALLATION: the product can be installed on both drywall and hollow bricks.

APPLICATIONS: the multimedia board is the central component of multi-service wiring within the home, allowing the distribution of signals to the various environments. The complete configuration is ideal in residential contexts where a large number of services and associated receiving/transmitting devices need to be managed.
CHARACTERISTICS: the product complies with the CEI 306-2 Guide. The bottom is fitted with lugs for fixing to the metal frame or plasterboard sheet. Vertical composition with other CDKi family enclosures (from 36 modules upwards) is possible using the GW40425 element.
ACCESSORIES SUPPLIED: the GW40390F code includes 1 pc front with blank door, 1 pc pre-assembled extractable frame with 3 pcs perforated mounting plates (of which 1 pc has 18 slots for Keystone Jack sockets), 3 m of Velcro tape h=16 mm, 6 pcs support brackets with fixing screws, 6 pcs self-adhesive cable clips with cable ties, No. 6 RJ45 cat.6 data sockets 6 pcs RJ45-RJ45 cat.6 0.6 m Ethernet cords, 1 pc telephone splitter with 5 pcs RJ11 sockets and 5 pcs RJ11-RJ45 telephone cords, and 1 pc multiple socket.
INSTALLATION: suitable for installation in masonry walls and in lightweight/plasterboard walls.

APPLICATIONS: multimedia Boards allow the distribution of the services from the DOMO CENTER through the apartment (e.g. internet, phone, satellite TV, etc.). This version is dedicated to big apartments and villas with a huge amount of services and devices that have to be connected.
FEATURES: the product is compliant to the CEI 306-2 Guide.
ACCESSORIES SUPPLIED: 2 pcs vertical wiring trunking 80x60 mm, 1 kit fixing screws, 1 pc frame with 3 pcs perforated mounting plates (1 pc with 18 Keystone Jack slot), 3 m velcro roll h=16 mm, 6 pcs brackets, 6 pcs self-adhesive cable clips with cable ties, 6 pcs. RJ45 Cat.6 Keystone Jack, 6 pcs patch cord RJ45-RJ45 Cat.6 0,6 m, 1 pc thelephone splitter with 5 RJ11 socket and 5 pcs patch cord RJ11-RJ45, 1 pc multiple socket with 4 Italian/German socket 2P+T 16A.
INSTALLATION: the finishing panel GWN1122XB can be used for better aesthetics and protection.

CHARACTERISTICS: single-mode, single-fiber, G.657.A2 Bend Insensitive, LSZH sheath optical fiber cables. The fibers are pre-terminated on both sides with SC/APC connectors. GW38317, GW38318, GW38319 are strengthened with a core of kevlar
NOTES: for indoor use. For mobile installation.

CHARACTERISTICS: single-fibre single-mode optic cable G.657.A2 bend insensitive, LSZH sheath. On the ends of the optic cable there is a Kevlar draw-string system to protect the SC/APC termination, to complete, after laying in ducts, with the 2 (toolless) sleeves provided.
NOTES: for indoor use.

CHARACTERISTICS: single-mode, 8-fiber optic cable G.657.A2, bend insensitive with LSZH sheath, on one send finished with SC/APC connectors while on the other, there is a Kevlar draw-string system to protect the SC/APC termination, to complete, after laying in ducts, with the 8 (toolless) sleeves provided.
NOTES: for indoor use.

CHARACTERISTICS: single-mode, 8-fiber, G.657.A2 Bend Insensitive, LSZH sheath optical fiber cable. The cables are strengthened with a core of kevlar.

CHARACTERISTICS: with ceramic fiber optic sleeve, snap-fit assembly and dust caps. Suitable to join two single-mode SC/APC fiber optic patch cables.
NOTES: for optic patch panel drawers, building optical service cabinets, building fiber termination boxes, apartment termination boxes, etc.

CHARACTERISTICS: cable outlet inclined of 40° to the wall line. With ceramic fiber optic sleeve and dust caps. The front output is protected with safety cap and unmissable cord. Suitable to join two single-mode SC/APC fiber optic patch cables.
NOTES: for adapters (Chorus, System and Dahlia) with Keystone Jack coupling.

CHARACTERISTICS: suitable to house up to 3 splices and max 4m optical fiber (with ø 0.9 mm cable).
ACCESSORIES SUPPLIED: 4 plastic strips to fasten the excess part of the optical fiber cable.
NOTES: coupling on the rear or 3-gang supports (e.g.: GW16803).

CHARACTERISTICS: replacement connectors for Fiber Fast systems.
ACCESSORIES SUPPLIED: 8 SC/APC connectors, 1 moist wipe for cleaning the ferrules.

CARACTERÍSTICAS: bornes por deslocamento de isolamento, sem ferramentas.
NOTA: para os patch-panels e caixas vazias (Chorus e System) com acoplamento tipo jack keystone.

CARACTERÍSTICAS DE PRODUÇÃO: Condutor em cobre 24 AWG. Isolamento em polietileno anti-chama. Contactos plug em bronze fosforoso.
PRESTAÇÕES: desempenho além proposto para a cat. 5e.
Conforme as prescrições solicitadas para aplicações, sendo elas 100BASE-Tx, 155 Mbps ATM e Gigabit Ethernet.
CARACTERÍSTICAS ELÉCTRICAS A 20°C: Impedância 100 Ohm +/- 15% 1-100 MHz; Capacidade: 13,5 pF/ft a 1 MHz.

CARACTERÍSTICAS: bornes por deslocamento de isolamento, sem ferramentas.
NOTA: para os patch-panels e caixas vazias com acoplamento tipo jack keystone.

CARACTERÍSTICAS DE FABRICAÇÃO: Condutor em cobre 24 AWG. Isolamento em polietileno anti-chama. Contactos plug em bronze fosforoso.
CARACTERÍSTICAS DE DESEMPENHO: desempenho além proposto para a cat. 5e.
Conforme as prescrições solicitadas para aplicações, sendo elas 100BASE-Tx, 155 Mbps ATM e Gigabit Ethernet.
CARACTERÍSTICAS ELÉCTRICAS A 20°C: impedância 100 Ohm +/- 15% 1-100 MHz. Capacidade: 13,5 pF/ft a 1 MHz.

NOTA: para caixas vazias (Chorus, Systen, Playbus) com acoplamento tipo Keystone Jack e patch-panels.

CHARACTERISTICS: made from sheet steel, powder coated, texture finish, with upper and lower cable entry. Movable and reversing 180° opening door with tempered glass window. Uprights adjustable in depth. Static load capacity 15Kg.
ACCESSORIES SUPPLIED: lock with 2 keys; earthing set.

CHARACTERISTICS: GW38442, GW38443, GW38444, GW38445 made from painted sheet steel, wrinkle texture. GW38446 body in plastic material, with dual pole luminous switch, 3m long cable, 90° 2P+E - 16A fre/ger std plug, power max 3500W.
NOTES: GW38443 to be completed with UTP and FTP RJ45 socket-outlets with Keystone Jack coupling (eg: GW38031, GW38032, GW38033, GW38034, GW38035, GW38036). For mounting on 10" wall mount cabinets use the metal small parts kit GW38557.

CHARACTERISTICS: made from sheet steel, powder coated, texture finish, with upper, lower and rear cable entry. Movable and reversing 180° opening door with tempered glass window. Uprights adjustable in depth. Static load capacity 50Kg.
ACCESSORIES SUPPLIED: quick coupling blind side panels, rear panel, roof plate and base; lock with 2 keys; earthing set.

CHARACTERISTICS: made from sheet steel, powder coated, texture finish and tempered glass window.
ACCESSORIES SUPPLIED: lock with 2 keys.

CHARACTERISTICS: suitable for 19" wall mount cabinets.
ACCESSORIES SUPPLIED: lock with 2 keys.

CHARACTERISTICS: made from sheet steel, powder coated, texture finish, with upper and lower cable entry. Movable and reversing 135° opening door with tempered glass window. Uprights adjustable in depth. Static load capacity 1000Kg.
ACCESSORIES SUPPLIED: quick coupling blind side and rear panels, roof plate and base; adjustable levelling feet; lock with 2 keys; earthing set.

CHARACTERISTICS: made from sheet steel, powder coated, texture finish and tempered glass window.
ACCESSORIES SUPPLIED: lock with 2 keys.

CHARACTERISTICS: suitable for 19" floor rack cabinets.
ACCESSORIES SUPPLIED: lock with 2 keys.

CHARACTERISTICS: made from zinc-plated sheet steel. Suitable for 19" floor rack cabinets.

CHARACTERISTICS: made from painted sheet steel, wrinkle texture.

CHARACTERISTICS: GW38477 suitable for fixing on the vertical cable management bars for the cabinets GW38461, GW38462, GW38463 and GW38464. GW38479 wrinkle texture, equipped with a pair of fans complete of 3m cable with german std plug and a thermostat.
NOTES: for mounting the air circulation unit GW38479 on 19" floor rack cabinets use the metal small parts kit GW38557.

CHARACTERISTICS: made from painted sheet steel, wrinkle texture.
NOTES: to be completed with UTP and FTP RJ45 socket-outlets with Keystone Jack coupling (eg: GW38031, GW38032, GW38033, GW38034, GW38035, GW38036). For mounting on 19" rack cabinets use the metal small parts kit GW38557.

CHARACTERISTICS: made from painted sheet steel, wrinkle texture. Optic drawers with easy clip opening.
NOTES: suitable for SC simplex (GW38326), LC duplex or ST simplex couplers. For mounting on 19" rack cabinets use the metal small parts kit GW38557.

CHARACTERISTICS: made from painted sheet steel, wrinkle texture. The load capacity values (Kg) are referred to a uniformly distributed load. GW38609 not suitable for 19" wall mount cabinets with depth of 400mm.
NOTES: for mounting on 19" rack cabinets use the metal small parts kit GW38557.

CHARACTERISTICS: made from painted sheet steel, wrinkle texture.
NOTES: for mounting on 19" rack cabinets use the metal small parts kit GW38557.

CHARACTERISTICS: made from painted sheet steel, wrinkle texture.
NOTES: for mounting on 19" rack cabinets use the metal small parts kit GW38557.

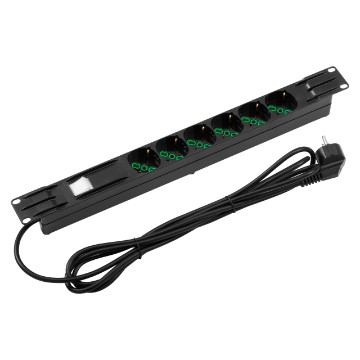

CHARACTERISTICS: body in plastic material, with dual pole luminous switch, 3m long cable, 90° 2P+E - 16A fre/ger std plug, power max 3500W.
NOTES: for mounting on 19" rack cabinets use the metal small parts kit GW38557.

ACCESSORIES SUPPLIED: GW38557 kit of cage nuts and 50 M6 screws.
