90 RCD Range<br />Modular circuit breakers for residual current protection

90 RCD Range
Modular circuit breakers for residual current protection

MDC 60 - A type - C curve - 6000 A (EN 61009-1) - 6 kA (EN 60947-2)

Compact residual current circuit breakers with overcurrent protection
Compact residual current circuit breakers with overcurrent protection
Gewiss Code
No. of poles
Idn
Rated current
Rated voltage
No. of modules EN 50022

Gewiss Code GW94305
No. of poles 1P+N
Idn 30 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94306
No. of poles 1P+N
Idn 30 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94311
No. of poles 1P+N
Idn 30 mA
Rated current 13 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94307
No. of poles 1P+N
Idn 30 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94308
No. of poles 1P+N
Idn 30 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94309
No. of poles 1P+N
Idn 30 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94310
No. of poles 1P+N
Idn 30 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94315
No. of poles 1P+N
Idn 300 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94316
No. of poles 1P+N
Idn 300 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94317
No. of poles 1P+N
Idn 300 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94318
No. of poles 1P+N
Idn 300 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94319
No. of poles 1P+N
Idn 300 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94320
No. of poles 1P+N
Idn 300 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94325
No. of poles 2P
Idn 30 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94326
No. of poles 2P
Idn 30 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94331
No. of poles 2P
Idn 30 mA
Rated current 13 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94327
No. of poles 2P
Idn 30 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94328
No. of poles 2P
Idn 30 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94329
No. of poles 2P
Idn 30 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94330
No. of poles 2P
Idn 30 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94335
No. of poles 2P
Idn 300 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94336
No. of poles 2P
Idn 300 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94337
No. of poles 2P
Idn 300 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94338
No. of poles 2P
Idn 300 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94339
No. of poles 2P
Idn 300 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94340
No. of poles 2P
Idn 300 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94345
No. of poles 3P
Idn 30 mA
Rated current 6 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW94346
No. of poles 3P
Idn 30 mA
Rated current 10 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW94351
No. of poles 3P
Idn 30 mA
Rated current 13 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW94347
No. of poles 3P
Idn 30 mA
Rated current 16 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW94348
No. of poles 3P
Idn 30 mA
Rated current 20 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW94349
No. of poles 3P
Idn 30 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW94350
No. of poles 3P
Idn 30 mA
Rated current 32 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW94355
No. of poles 3P
Idn 300 mA
Rated current 6 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW94356
No. of poles 3P
Idn 300 mA
Rated current 10 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW94357
No. of poles 3P
Idn 300 mA
Rated current 16 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW94358
No. of poles 3P
Idn 300 mA
Rated current 20 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW94359
No. of poles 3P
Idn 300 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW94360
No. of poles 3P
Idn 300 mA
Rated current 32 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW94365
No. of poles 4P
Idn 30 mA
Rated current 6 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW94366
No. of poles 4P
Idn 30 mA
Rated current 10 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW94371
No. of poles 4P
Idn 30 mA
Rated current 13 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW94367
No. of poles 4P
Idn 30 mA
Rated current 16 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW94368
No. of poles 4P
Idn 30 mA
Rated current 20 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW94369
No. of poles 4P
Idn 30 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW94370
No. of poles 4P
Idn 30 mA
Rated current 32 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW94375
No. of poles 4P
Idn 300 mA
Rated current 6 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW94376
No. of poles 4P
Idn 300 mA
Rated current 10 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW94377
No. of poles 4P
Idn 300 mA
Rated current 16 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW94378
No. of poles 4P
Idn 300 mA
Rated current 20 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW94379
No. of poles 4P
Idn 300 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW94380
No. of poles 4P
Idn 300 mA
Rated current 32 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW94322
No. of poles 2P
Idn 30 mA
Rated current 2 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94324
No. of poles 2P
Idn 30 mA
Rated current 4 A
Rated voltage 230 V
No. of modules EN 50022 2
Go

MDC 60 - A[IR] type Impulse Resistant - C curve - 6000 A (EN 61009-1) - 6 kA (EN 60947-2)

Compact residual current circuit breakers with overcurrent protection
Compact residual current circuit breakers with overcurrent protection
Gewiss Code
No. of poles
Idn
Rated current
Rated voltage
No. of modules EN 50022

Gewiss Code GW95805
No. of poles 2P
Idn 30 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95806
No. of poles 2P
Idn 30 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95811
No. of poles 2P
Idn 30 mA
Rated current 13 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95807
No. of poles 2P
Idn 30 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95808
No. of poles 2P
Idn 30 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95809
No. of poles 2P
Idn 30 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95810
No. of poles 2P
Idn 30 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95815
No. of poles 4P
Idn 30 mA
Rated current 6 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95816
No. of poles 4P
Idn 30 mA
Rated current 10 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95821
No. of poles 4P
Idn 30 mA
Rated current 13 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95817
No. of poles 4P
Idn 30 mA
Rated current 16 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95818
No. of poles 4P
Idn 30 mA
Rated current 20 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95819
No. of poles 4P
Idn 30 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95820
No. of poles 4P
Idn 30 mA
Rated current 32 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
EQUIPMENT AND NOTES

MDC 60 - A[S] type Selective - C curve - 6000 A (EN 61009-1) - 6 kA (EN 60947-2)

Compact residual current circuit breakers with overcurrent protection
Compact residual current circuit breakers with overcurrent protection
Gewiss Code
No. of poles
Idn
Rated current
Rated voltage
No. of modules EN 50022

Gewiss Code GW95847
No. of poles 2P
Idn 300 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95848
No. of poles 2P
Idn 300 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95849
No. of poles 2P
Idn 300 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95850
No. of poles 2P
Idn 300 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95857
No. of poles 4P
Idn 300 mA
Rated current 16 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95858
No. of poles 4P
Idn 300 mA
Rated current 20 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95859
No. of poles 4P
Idn 300 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95860
No. of poles 4P
Idn 300 mA
Rated current 32 A
Rated voltage 400 V
No. of modules EN 50022 4
Go

MDC 60 - A type - B curve - 6000 A (EN 61009-1) - 6 kA (EN 60947-2)

Compact residual current circuit breakers with overcurrent protection
Compact residual current circuit breakers with overcurrent protection
Gewiss Code
No. of poles
Idn
Rated current
Rated voltage
No. of modules EN 50022

Gewiss Code GW95105
No. of poles 1P+N
Idn 30 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95106
No. of poles 1P+N
Idn 30 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95111
No. of poles 1P+N
Idn 30 mA
Rated current 13 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95107
No. of poles 1P+N
Idn 30 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95108
No. of poles 1P+N
Idn 30 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95109
No. of poles 1P+N
Idn 30 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95110
No. of poles 1P+N
Idn 30 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95115
No. of poles 1P+N
Idn 300 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95116
No. of poles 1P+N
Idn 300 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95117
No. of poles 1P+N
Idn 300 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95118
No. of poles 1P+N
Idn 300 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95119
No. of poles 1P+N
Idn 300 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95120
No. of poles 1P+N
Idn 300 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95125
No. of poles 2P
Idn 30 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95126
No. of poles 2P
Idn 30 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95131
No. of poles 2P
Idn 30 mA
Rated current 13 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95127
No. of poles 2P
Idn 30 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95128
No. of poles 2P
Idn 30 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95129
No. of poles 2P
Idn 30 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95130
No. of poles 2P
Idn 30 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95135
No. of poles 2P
Idn 300 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95136
No. of poles 2P
Idn 300 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95137
No. of poles 2P
Idn 300 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95138
No. of poles 2P
Idn 300 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95139
No. of poles 2P
Idn 300 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95140
No. of poles 2P
Idn 300 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95145
No. of poles 3P
Idn 30 mA
Rated current 6 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW95146
No. of poles 3P
Idn 30 mA
Rated current 10 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW95151
No. of poles 3P
Idn 30 mA
Rated current 13 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW95147
No. of poles 3P
Idn 30 mA
Rated current 16 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW95148
No. of poles 3P
Idn 30 mA
Rated current 20 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW95149
No. of poles 3P
Idn 30 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW95150
No. of poles 3P
Idn 30 mA
Rated current 32 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW95155
No. of poles 3P
Idn 300 mA
Rated current 6 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW95156
No. of poles 3P
Idn 300 mA
Rated current 10 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW95157
No. of poles 3P
Idn 300 mA
Rated current 16 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW95158
No. of poles 3P
Idn 300 mA
Rated current 20 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW95159
No. of poles 3P
Idn 300 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW95160
No. of poles 3P
Idn 300 mA
Rated current 32 A
Rated voltage 400 V
No. of modules EN 50022 3
Go
Gewiss Code GW95165
No. of poles 4P
Idn 30 mA
Rated current 6 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95166
No. of poles 4P
Idn 30 mA
Rated current 10 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95171
No. of poles 4P
Idn 30 mA
Rated current 13 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95167
No. of poles 4P
Idn 30 mA
Rated current 16 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95168
No. of poles 4P
Idn 30 mA
Rated current 20 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95169
No. of poles 4P
Idn 30 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95170
No. of poles 4P
Idn 30 mA
Rated current 32 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95175
No. of poles 4P
Idn 300 mA
Rated current 6 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95176
No. of poles 4P
Idn 300 mA
Rated current 10 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95177
No. of poles 4P
Idn 300 mA
Rated current 16 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95178
No. of poles 4P
Idn 300 mA
Rated current 20 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95179
No. of poles 4P
Idn 300 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 4
Go
Gewiss Code GW95180
No. of poles 4P
Idn 300 mA
Rated current 32 A
Rated voltage 400 V
No. of modules EN 50022 4
Go

MDC 100 - A type - C curve - 10000 A (EN 61009-1) - 15 kA (EN 60947-2)

Compact residual current circuit breakers with overcurrent protection
Compact residual current circuit breakers with overcurrent protection
Gewiss Code
No. of poles
Idn
Rated current
Rated voltage
No. of modules EN 50022

Gewiss Code GW95205
No. of poles 1P+N
Idn 30 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95206
No. of poles 1P+N
Idn 30 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95211
No. of poles 1P+N
Idn 30 mA
Rated current 13 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95207
No. of poles 1P+N
Idn 30 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95208
No. of poles 1P+N
Idn 30 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95209
No. of poles 1P+N
Idn 30 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95210
No. of poles 1P+N
Idn 30 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95215
No. of poles 1P+N
Idn 300 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95216
No. of poles 1P+N
Idn 300 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95217
No. of poles 1P+N
Idn 300 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95218
No. of poles 1P+N
Idn 300 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95219
No. of poles 1P+N
Idn 300 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95220
No. of poles 1P+N
Idn 300 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95225
No. of poles 2P
Idn 30 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95226
No. of poles 2P
Idn 30 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95231
No. of poles 2P
Idn 30 mA
Rated current 13 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95227
No. of poles 2P
Idn 30 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95228
No. of poles 2P
Idn 30 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95229
No. of poles 2P
Idn 30 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95230
No. of poles 2P
Idn 30 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95785
No. of poles 2P
Idn 100 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95786
No. of poles 2P
Idn 100 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95791
No. of poles 2P
Idn 100 mA
Rated current 13 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95787
No. of poles 2P
Idn 100 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95788
No. of poles 2P
Idn 100 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95789
No. of poles 2P
Idn 100 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95790
No. of poles 2P
Idn 100 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95235
No. of poles 2P
Idn 300 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95236
No. of poles 2P
Idn 300 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95237
No. of poles 2P
Idn 300 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95238
No. of poles 2P
Idn 300 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95239
No. of poles 2P
Idn 300 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95240
No. of poles 2P
Idn 300 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95245
No. of poles 3P
Idn 30 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 3
Go
Gewiss Code GW95246
No. of poles 3P
Idn 30 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 3
Go
Gewiss Code GW95247
No. of poles 3P
Idn 30 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 3
Go
Gewiss Code GW95248
No. of poles 3P
Idn 30 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 3
Go
Gewiss Code GW95249
No. of poles 3P
Idn 30 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 3
Go
Gewiss Code GW95250
No. of poles 3P
Idn 30 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 3
Go

MDC 100 MA - A type - C curve - 10000 A (EN 61009-1) - 15 kA (EN 60947-2)

Compact residual current circuit breakers with overcurrent protection
Compact residual current circuit breakers with overcurrent protection
Gewiss Code
No. of poles
Idn
Rated current
Rated voltage
No. of modules EN 50022

Gewiss Code GW95225MA
No. of poles 2P
Idn 30 mA
Rated current 6 A
Rated voltage 110 V
No. of modules EN 50022 2
Go
Gewiss Code GW95226MA
No. of poles 2P
Idn 30 mA
Rated current 10 A
Rated voltage 110 V
No. of modules EN 50022 2
Go
Gewiss Code GW95231MA
No. of poles 2P
Idn 30 mA
Rated current 13 A
Rated voltage 110 V
No. of modules EN 50022 2
Go
Gewiss Code GW95227MA
No. of poles 2P
Idn 30 mA
Rated current 16 A
Rated voltage 110 V
No. of modules EN 50022 2
Go
Gewiss Code GW95228MA
No. of poles 2P
Idn 30 mA
Rated current 20 A
Rated voltage 110 V
No. of modules EN 50022 2
Go
Gewiss Code GW95229MA
No. of poles 2P
Idn 30 mA
Rated current 25 A
Rated voltage 110 V
No. of modules EN 50022 2
Go
Gewiss Code GW95230MA
No. of poles 2P
Idn 30 mA
Rated current 32 A
Rated voltage 110 V
No. of modules EN 50022 2
Go
Gewiss Code GW95235MA
No. of poles 2P
Idn 300 mA
Rated current 6 A
Rated voltage 110 V
No. of modules EN 50022 2
Go
Gewiss Code GW95236MA
No. of poles 2P
Idn 300 mA
Rated current 10 A
Rated voltage 110 V
No. of modules EN 50022 2
Go
Gewiss Code GW95237MA
No. of poles 2P
Idn 300 mA
Rated current 16 A
Rated voltage 110 V
No. of modules EN 50022 2
Go
Gewiss Code GW95238MA
No. of poles 2P
Idn 300 mA
Rated current 20 A
Rated voltage 110 V
No. of modules EN 50022 2
Go
Gewiss Code GW95239MA
No. of poles 2P
Idn 300 mA
Rated current 25 A
Rated voltage 110 V
No. of modules EN 50022 2
Go
Gewiss Code GW95240MA
No. of poles 2P
Idn 300 mA
Rated current 32 A
Rated voltage 110 V
No. of modules EN 50022 2
Go

MDC 100 - A[IR] type Impulse Resistant - C curve - 10000 A (EN 61009-1) - 15 kA (EN 60947-2)

Compact residual current circuit breakers with overcurrent protection
Compact residual current circuit breakers with overcurrent protection
Gewiss Code
No. of poles
Idn
Rated current
Rated voltage
No. of modules EN 50022

Gewiss Code GW95825
No. of poles 2P
Idn 30 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95826
No. of poles 2P
Idn 30 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95831
No. of poles 2P
Idn 30 mA
Rated current 13 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95827
No. of poles 2P
Idn 30 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95828
No. of poles 2P
Idn 30 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95829
No. of poles 2P
Idn 30 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95830
No. of poles 2P
Idn 30 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
EQUIPMENT AND NOTES

MDC 100 - A type - B curve - 10000 A (EN 61009-1) - 15 kA (EN 60947-2)

Compact residual current circuit breakers with overcurrent protection
Compact residual current circuit breakers with overcurrent protection
Gewiss Code
No. of poles
Idn
Rated current
Rated voltage
No. of modules EN 50022

Gewiss Code GW95325
No. of poles 2P
Idn 30 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95326
No. of poles 2P
Idn 30 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95331
No. of poles 2P
Idn 30 mA
Rated current 13 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95327
No. of poles 2P
Idn 30 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95328
No. of poles 2P
Idn 30 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95329
No. of poles 2P
Idn 30 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95330
No. of poles 2P
Idn 30 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95795
No. of poles 2P
Idn 100 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95796
No. of poles 2P
Idn 100 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95801
No. of poles 2P
Idn 100 mA
Rated current 13 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95797
No. of poles 2P
Idn 100 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95798
No. of poles 2P
Idn 100 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95799
No. of poles 2P
Idn 100 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95800
No. of poles 2P
Idn 100 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95335
No. of poles 2P
Idn 300 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95336
No. of poles 2P
Idn 300 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95337
No. of poles 2P
Idn 300 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95338
No. of poles 2P
Idn 300 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95339
No. of poles 2P
Idn 300 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95340
No. of poles 2P
Idn 300 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go

MDC 100 - A[IR] type Impulse Resistant - B curve - 10000 A (EN 61009-1) - 10 kA (EN 60947-2)

Compact residual current circuit breakers with overcurrent protection
Compact residual current circuit breakers with overcurrent protection
Gewiss Code
No. of poles
Idn
Rated current
Rated voltage
No. of modules EN 50022

Gewiss Code GW95835
No. of poles 2P
Idn 30 mA
Rated current 6 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95836
No. of poles 2P
Idn 30 mA
Rated current 10 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95841
No. of poles 2P
Idn 30 mA
Rated current 13 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95837
No. of poles 2P
Idn 30 mA
Rated current 16 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95838
No. of poles 2P
Idn 30 mA
Rated current 20 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95839
No. of poles 2P
Idn 30 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW95840
No. of poles 2P
Idn 30 mA
Rated current 32 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
EQUIPMENT AND NOTES

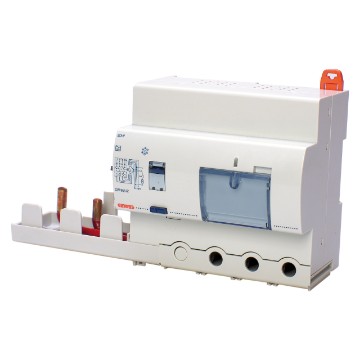

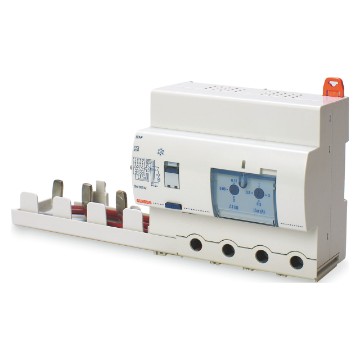

BD - A type (instantaneous)

Add-on residual current devices
Add-on residual current devices
Gewiss Code
No. of poles
Idn
Rated current
Rated voltage
No. of modules EN 50022

Gewiss Code GW94502
No. of poles 2P
Idn 30 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94503
No. of poles 2P
Idn 300 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94504
No. of poles 2P
Idn 500 mA
Rated current 25 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94512
No. of poles 2P
Idn 30 mA
Rated current 63 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94513
No. of poles 2P
Idn 300 mA
Rated current 63 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94514
No. of poles 2P
Idn 500 mA
Rated current 63 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94542
No. of poles 3P
Idn 30 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94543
No. of poles 3P
Idn 300 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94544
No. of poles 3P
Idn 500 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94547
No. of poles 3P
Idn 30 mA
Rated current 63 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94548
No. of poles 3P
Idn 300 mA
Rated current 63 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94549
No. of poles 3P
Idn 500 mA
Rated current 63 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94522
No. of poles 4P
Idn 30 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94523
No. of poles 4P
Idn 300 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94524
No. of poles 4P
Idn 500 mA
Rated current 25 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94532
No. of poles 4P
Idn 30 mA
Rated current 63 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94533
No. of poles 4P
Idn 300 mA
Rated current 63 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94534
No. of poles 4P
Idn 500 mA
Rated current 63 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go

BD - A[IR] type (impulse resistant)

BD - A[S] type (selective)

Add-on residual current devices
Add-on residual current devices
Gewiss Code
No. of poles
Idn
Rated current
Rated voltage
No. of modules EN 50022

Gewiss Code GW94563
No. of poles 2P
Idn 300 mA
Rated current 63 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94565
No. of poles 2P
Idn 1000 mA
Rated current 63 A
Rated voltage 230 V
No. of modules EN 50022 2
Go
Gewiss Code GW94598
No. of poles 3P
Idn 300 mA
Rated current 63 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94600
No. of poles 3P
Idn 1000 mA
Rated current 63 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94583
No. of poles 4P
Idn 300 mA
Rated current 63 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go
Gewiss Code GW94585
No. of poles 4P
Idn 1000 mA
Rated current 63 A
Rated voltage 400 V
No. of modules EN 50022 3.5
Go

BDHP - A type (instantaneous)

Add-on residual current devices
Add-on residual current devices
Gewiss Code
No. of poles
Idn
Rated current
Rated voltage
No. of modules EN 50022

Gewiss Code GW95436
No. of poles 2P
Idn 30 mA
Rated current 125 A
Rated voltage 230 V
No. of modules EN 50022 4
Go
Gewiss Code GW95438
No. of poles 2P
Idn 300 mA
Rated current 125 A
Rated voltage 230 V
No. of modules EN 50022 4
Go
Gewiss Code GW95446
No. of poles 3P
Idn 30 mA
Rated current 125 A
Rated voltage 400 V
No. of modules EN 50022 6
Go
Gewiss Code GW95448
No. of poles 3P
Idn 300 mA
Rated current 125 A
Rated voltage 400 V
No. of modules EN 50022 6
Go
Gewiss Code GW95456
No. of poles 4P
Idn 30 mA
Rated current 125 A
Rated voltage 400 V
No. of modules EN 50022 6
Go
Gewiss Code GW95458
No. of poles 4P
Idn 300 mA
Rated current 125 A
Rated voltage 400 V
No. of modules EN 50022 6
Go

BDHP - A[S] type (selective)

Add-on residual current devices
Add-on residual current devices
Gewiss Code
No. of poles
Idn
Rated current
Rated voltage
No. of modules EN 50022

Gewiss Code GW95468
No. of poles 2P
Idn 300 mA
Rated current 125 A
Rated voltage 230 V
No. of modules EN 50022 4
Go
Gewiss Code GW95470
No. of poles 2P
Idn 1000 mA
Rated current 125 A
Rated voltage 230 V
No. of modules EN 50022 4
Go
Gewiss Code GW95478
No. of poles 3P
Idn 300 mA
Rated current 125 A
Rated voltage 400 V
No. of modules EN 50022 6
Go
Gewiss Code GW95480
No. of poles 3P
Idn 1000 mA
Rated current 125 A
Rated voltage 400 V
No. of modules EN 50022 6
Go
Gewiss Code GW95488
No. of poles 4P
Idn 300 mA
Rated current 125 A
Rated voltage 400 V
No. of modules EN 50022 6
Go
Gewiss Code GW95490
No. of poles 4P
Idn 1000 mA
Rated current 125 A
Rated voltage 400 V
No. of modules EN 50022 6
Go

BDHP - Type A[IR] Adjustable boosted immunity

EQUIPMENT AND NOTES

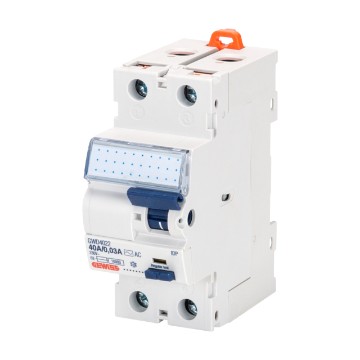

IDP - A Type istantaneous

Residual current circuit breakers
Residual current circuit breakers
Gewiss Code
No. of poles
Rated current
Idn
Rated voltage
Auxiliaries compatibility
ReStart compatibility
No. of modules EN 50022

Gewiss Code GWD4011
No. of poles 2P
Rated current 25 A
Idn 10 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4012
No. of poles 2P
Rated current 25 A
Idn 30 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4013
No. of poles 2P
Rated current 25 A
Idn 100 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4014
No. of poles 2P
Rated current 25 A
Idn 300 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4032
No. of poles 2P
Rated current 40 A
Idn 30 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4033
No. of poles 2P
Rated current 40 A
Idn 100 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4034
No. of poles 2P
Rated current 40 A
Idn 300 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4035
No. of poles 2P
Rated current 40 A
Idn 500 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4052
No. of poles 2P
Rated current 63 A
Idn 30 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4053
No. of poles 2P
Rated current 63 A
Idn 100 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4054
No. of poles 2P
Rated current 63 A
Idn 300 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4055
No. of poles 2P
Rated current 63 A
Idn 500 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4072
No. of poles 2P
Rated current 80 A
Idn 30 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4073
No. of poles 2P
Rated current 80 A
Idn 100 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4074
No. of poles 2P
Rated current 80 A
Idn 300 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4092
No. of poles 2P
Rated current 100 A
Idn 30 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4093
No. of poles 2P
Rated current 100 A
Idn 100 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4094
No. of poles 2P
Rated current 100 A
Idn 300 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GW94866
No. of poles 4P
Rated current 25 A
Idn 10 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 3
Go
Gewiss Code GW94867
No. of poles 4P
Rated current 25 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 3
Go
Gewiss Code GW94869
No. of poles 4P
Rated current 25 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 3
Go
Gewiss Code GW94885
No. of poles 4P
Rated current 40 A
Idn 30 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 3
Go
Gewiss Code GW94897
No. of poles 4P
Rated current 40 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 3
Go
Gewiss Code GW94898
No. of poles 4P
Rated current 40 A
Idn 100 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 3
Go
Gewiss Code GW94899
No. of poles 4P
Rated current 40 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 3
Go
Gewiss Code GW94900
No. of poles 4P
Rated current 40 A
Idn 500 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 3
Go
Gewiss Code GWD4111
No. of poles 4P
Rated current 25 A
Idn 10 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4112
No. of poles 4P
Rated current 25 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4113
No. of poles 4P
Rated current 25 A
Idn 100 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4114
No. of poles 4P
Rated current 25 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4132
No. of poles 4P
Rated current 40 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4133
No. of poles 4P
Rated current 40 A
Idn 100 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4134
No. of poles 4P
Rated current 40 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4135
No. of poles 4P
Rated current 40 A
Idn 500 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4152
No. of poles 4P
Rated current 63 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4153
No. of poles 4P
Rated current 63 A
Idn 100 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4154
No. of poles 4P
Rated current 63 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4155
No. of poles 4P
Rated current 63 A
Idn 500 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4172
No. of poles 4P
Rated current 80 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4173
No. of poles 4P
Rated current 80 A
Idn 100 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4174
No. of poles 4P
Rated current 80 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4192
No. of poles 4P
Rated current 100 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4193
No. of poles 4P
Rated current 100 A
Idn 100 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4194
No. of poles 4P
Rated current 100 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4195
No. of poles 4P
Rated current 100 A
Idn 500 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GW95606
No. of poles 4P
Rated current 125 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
Gewiss Code GW95608
No. of poles 4P
Rated current 125 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
Gewiss Code GW95609
No. of poles 4P
Rated current 125 A
Idn 500 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
Gewiss Code GWD4312
No. of poles 4P (N-conductor left)
Rated current 25 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4314
No. of poles 4P (N-conductor left)
Rated current 25 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4332
No. of poles 4P (N-conductor left)
Rated current 40 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4334
No. of poles 4P (N-conductor left)
Rated current 40 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4352
No. of poles 4P (N-conductor left)
Rated current 63 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4354
No. of poles 4P (N-conductor left)
Rated current 63 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go

IDP - A[IR] Type (impulse resistant)

Residual current circuit breakers
Residual current circuit breakers
Gewiss Code
No. of poles
Rated current
Idn
Rated voltage
Auxiliaries compatibility
ReStart compatibility
No. of modules EN 50022

Gewiss Code GWD4202
No. of poles 2P
Rated current 25 A
Idn 30 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4203
No. of poles 2P
Rated current 25 A
Idn 300 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4205
No. of poles 2P
Rated current 40 A
Idn 30 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4206
No. of poles 2P
Rated current 40 A
Idn 300 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4208
No. of poles 2P
Rated current 63 A
Idn 30 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4209
No. of poles 2P
Rated current 63 A
Idn 300 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4211
No. of poles 2P
Rated current 100 A
Idn 30 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4217
No. of poles 4P
Rated current 25 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4218
No. of poles 4P
Rated current 25 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4220
No. of poles 4P
Rated current 40 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4221
No. of poles 4P
Rated current 40 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4223
No. of poles 4P
Rated current 63 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4224
No. of poles 4P
Rated current 63 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4226
No. of poles 4P
Rated current 100 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4227
No. of poles 4P
Rated current 100 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4317
No. of poles 4P (N-conductor left)
Rated current 25 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4337
No. of poles 4P (N-conductor left)
Rated current 40 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4357
No. of poles 4P (N-conductor left)
Rated current 63 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
EQUIPMENT AND NOTES

IDP - A[S] Type (selective)

Residual current circuit breakers
Residual current circuit breakers
Gewiss Code
No. of poles
Rated current
Idn
Rated voltage
Auxiliaries compatibility
ReStart compatibility
No. of modules EN 50022

Gewiss Code GWD4234
No. of poles 2P
Rated current 40 A
Idn 300 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4235
No. of poles 2P
Rated current 40 A
Idn 500 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4237
No. of poles 2P
Rated current 63 A
Idn 300 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4238
No. of poles 2P
Rated current 63 A
Idn 500 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4243
No. of poles 2P
Rated current 100 A
Idn 300 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4244
No. of poles 2P
Rated current 100 A
Idn 500 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 2
Go
Gewiss Code GWD4249
No. of poles 4P
Rated current 40 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4250
No. of poles 4P
Rated current 40 A
Idn 500 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4252
No. of poles 4P
Rated current 63 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4253
No. of poles 4P
Rated current 63 A
Idn 500 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4258
No. of poles 4P
Rated current 100 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go
Gewiss Code GWD4259
No. of poles 4P
Rated current 100 A
Idn 500 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility Yes
No. of modules EN 50022 4
Go

IDP - B[IR] Type (impulse resistant)

Residual current circuit breakers
Residual current circuit breakers
Gewiss Code
No. of poles
Rated current
Idn
Rated voltage
Auxiliaries compatibility
ReStart compatibility
No. of modules EN 50022

Gewiss Code GW95701
No. of poles 2P
Rated current 25 A
Idn 30 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
Gewiss Code GW95706
No. of poles 2P
Rated current 40 A
Idn 30 mA
Rated voltage 230 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
Gewiss Code GW95716
No. of poles 4P
Rated current 25 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
Gewiss Code GW95718
No. of poles 4P
Rated current 25 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
Gewiss Code GW95721
No. of poles 4P
Rated current 40 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
Gewiss Code GW95723
No. of poles 4P
Rated current 40 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
Gewiss Code GW95726
No. of poles 4P
Rated current 63 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
Gewiss Code GW95728
No. of poles 4P
Rated current 63 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
Gewiss Code GW95729
No. of poles 4P
Rated current 63 A
Idn 500 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
Gewiss Code GW95731
No. of poles 4P
Rated current 80 A
Idn 30 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
Gewiss Code GW95733
No. of poles 4P
Rated current 80 A
Idn 300 mA
Rated voltage 400 V
Auxiliaries compatibility Yes
ReStart compatibility No
No. of modules EN 50022 4
Go
EQUIPMENT AND NOTES

IDP - B[S] Type (selective)

Safety socket-outlets with residual current protection

Profiling
Customized solutions for you
PRODUCTS AND SOLUTIONS FOR YOUR NEEDS
Error sending request.
Please try again later!
Thank you!
Your request has been sent successfully
